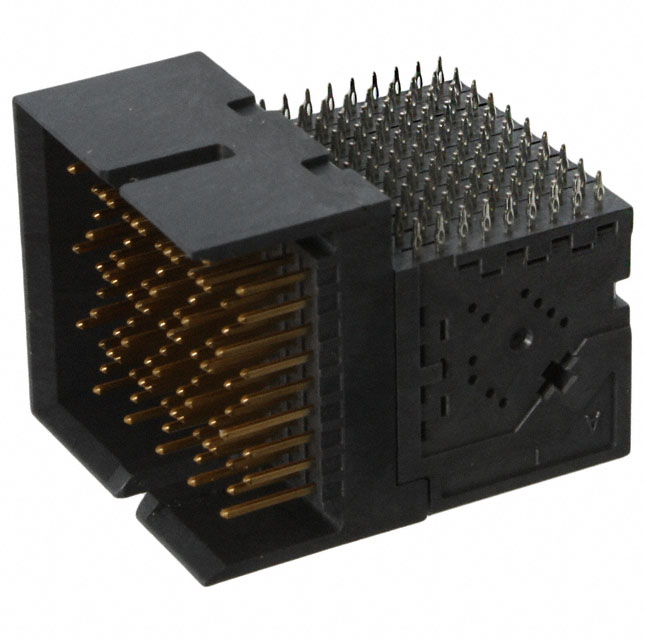

2102317-1
Or copy the link below:
- Mfr.Part #
- 2102317-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 90POS EDGE MNT
- Stock
- 28,855
- In Stock ：
- 28,855
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Specialized
- Flammability Rating :
- UL94 V-0
- Mixed Contacts :
- No
- Gender :
- Receptacle
- Orientation :
- RIGHT ANGLE
- Housing Material :
- Polymer
- Series :
- Fortis Zd
- Connector Usage :
- Daughtercard
- Connector Type :
- Header, Male Pins
- Contact Current Rating :
- 1.5A
- Number of Rows :
- 9
- Pitch :
- 1.4mm
- Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Alignment :
- Without
- Published :
- 2012
- Contact Finish :
- Gold
- Contact Material :
- NOT SPECIFIED
- Depth :
- 26.3mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Filter Feature :
- No
- Number of Positions :
- 90
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Tray
- Row Spacing :
- 60 µm
- Factory Lead Time :
- 23 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- MIL Conformance :
- No
- Number of Positions Loaded :
- All
- Termination :
- Press-Fit
- Max Current Rating :
- 1.5A
- Mount :
- Edge, Through Hole
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Operating Temperature :
- -65°C~125°C
- Number of Columns :
- 10
- Pbfree Code :
- No
- Current Rating :
- 1.5A
- IEC Conformance :
- No
- Option :
- GENERAL PURPOSE
- ELV :
- Non-Compliant
- Shrouding :
- Partially Shrouded
- RoHS Status :
- Non-RoHS Compliant
- Total Number of Contacts :
- 90
- DIN Conformance :
- No
- Feature :
- Shielded
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Length :
- 21.45mm
- Datasheets
- 2102317-1
Fortis Zd Series Header, Male Pins Press-Fit Gold Black 50.0μin 1.27μm 90 Positions Pitch: 1.4mm -65°C~125°C Tray Board Edge, Through Hole, Right Angle
2102317-1 Overview
The product comes in a package of Header, Male Pins.Board Edge, Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the Fortis Zd Series.It is more powerful in many ways due to its Shielded feature.It is mounted by Edge, Through Hole.It operates at an operating temperature of -65°C~125°C.
2102317-1 Features
Fortis Zd series
2102317-1 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
2102317-1 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
