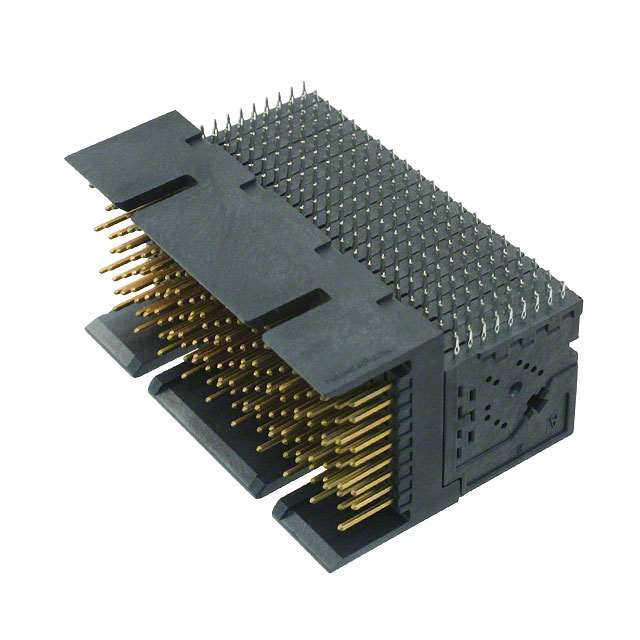

2102316-1
Or copy the link below:
- Mfr.Part #
- 2102316-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 180POS EDGE MNT
- Stock
- 20,602
- In Stock ：
- 20,602
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Specialized
- Number of Positions :
- 180
- Contact Finish :
- Gold
- Connector Usage :
- Daughtercard
- DIN Conformance :
- No
- Shrouding :
- Partially Shrouded
- Number of Positions Loaded :
- All
- Pitch :
- 1.4mm
- Current Rating :
- 1.5A
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Current Rating :
- 1.5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tray
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Feature :
- Shielded
- RoHS Status :
- Non-RoHS Compliant
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Material Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Material :
- NOT SPECIFIED
- Mating Alignment :
- Without
- MIL Conformance :
- No
- Termination :
- Press-Fit
- ELV :
- Non-Compliant
- Total Number of Contacts :
- 180
- Housing Material :
- Polymer
- Series :
- Fortis Zd
- Color :
- Black
- Pbfree Code :
- No
- Length :
- 37.92mm
- IEC Conformance :
- No
- Operating Temperature :
- -65°C~125°C
- Number of Columns :
- 20
- Row Spacing :
- 60 µm
- Mount :
- Edge, Through Hole
- Orientation :
- RIGHT ANGLE
- Filter Feature :
- No
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 9
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Published :
- 2012
- Factory Lead Time :
- 23 Weeks
- Connector Type :
- Header, Male Pins
- Max Current Rating :
- 1.5A
- Datasheets
- 2102316-1
Fortis Zd Series Header, Male Pins Press-Fit Gold Black 50.0μin 1.27μm 180 Positions Pitch: 1.4mm -65°C~125°C Tray Board Edge, Through Hole, Right Angle
2102316-1 Overview
Packaging is in the form of Header, Male Pins.This device has a Board Edge, Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Fortis Zd Series.Several benefits come from the Shielded feature.There is a mounting hole at Edge, Through Hole.Devices operate at -65°C~125°C operating temperatures.
2102316-1 Features
Fortis Zd series
2102316-1 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
2102316-1 Backplane Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
