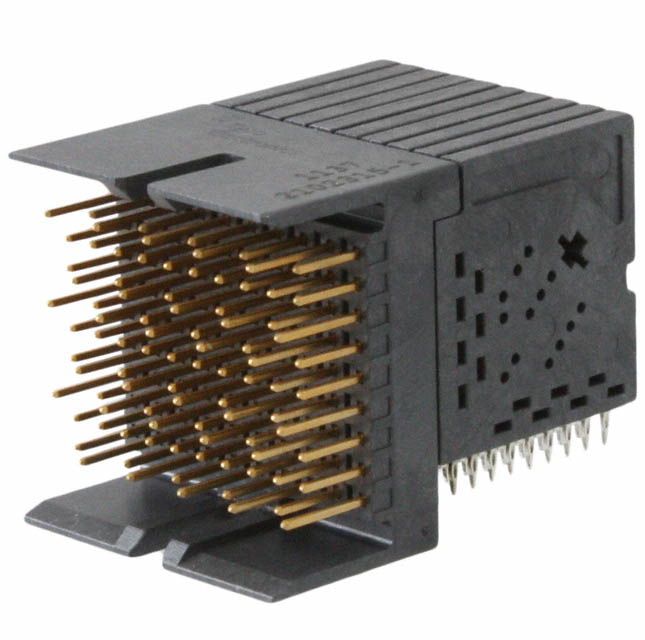

2102315-1
Or copy the link below:
- Mfr.Part #
- 2102315-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 90POS EDGE MNT
- Stock
- 18,320
- In Stock ：
- 18,320
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Specialized
- RoHS Status :
- Non-RoHS Compliant
- Contact Material :
- NOT SPECIFIED
- Operating Temperature :
- -65°C~125°C
- DIN Conformance :
- No
- Housing Material :
- Polymer
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Depth :
- 26.3mm
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 17 Weeks
- Option :
- GENERAL PURPOSE
- Termination :
- Press-Fit
- Packaging :
- Tube
- Number of Rows :
- 9
- PCB Mounting Orientation :
- RIGHT ANGLE
- Row Spacing :
- 60 µm
- IEC Conformance :
- No
- MIL Conformance :
- No
- Length :
- 18.9mm
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Color :
- Black
- Number of Positions Loaded :
- All
- Filter Feature :
- No
- Material Flammability Rating :
- UL94 V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 1.9mm
- Pbfree Code :
- No
- Feature :
- Shielded
- Current Rating :
- 1.5A
- Max Current Rating :
- 1.5A
- Mating Alignment :
- Without
- Mixed Contacts :
- No
- Mount :
- Edge, Through Hole
- Series :
- Fortis Zd
- Number of Columns :
- 10
- Shrouding :
- Partially Shrouded
- Connector Type :
- Header, Male Pins
- Published :
- 2012
- Connector Usage :
- Daughtercard
- Contact Finish :
- Gold
- ELV :
- Non-Compliant
- Total Number of Contacts :
- 90
- Number of Positions :
- 90
- Contact Current Rating :
- 1.5A
- Gender :
- Receptacle
- Datasheets
- 2102315-1
Fortis Zd Series Header, Male Pins Press-Fit Gold Black 50.0μin 1.27μm 90 Positions Pitch: 1.9mm -65°C~125°C Tube Board Edge, Through Hole, Right Angle
2102315-1 Overview
The product is packaged in Header, Male Pins.This device is mounted in the Board Edge, Through Hole, Right Angle position.It has been determined that a Tube case is necessary to package the product.There is a product in the Fortis Zd Series.There are a number of advantages to its Shielded feature.Part Edge, Through Hole is mounted to the part.As a result, the device runs at -65°C~125°C Operating Temperature.
2102315-1 Features
Fortis Zd series
2102315-1 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
2102315-1 Backplane Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
