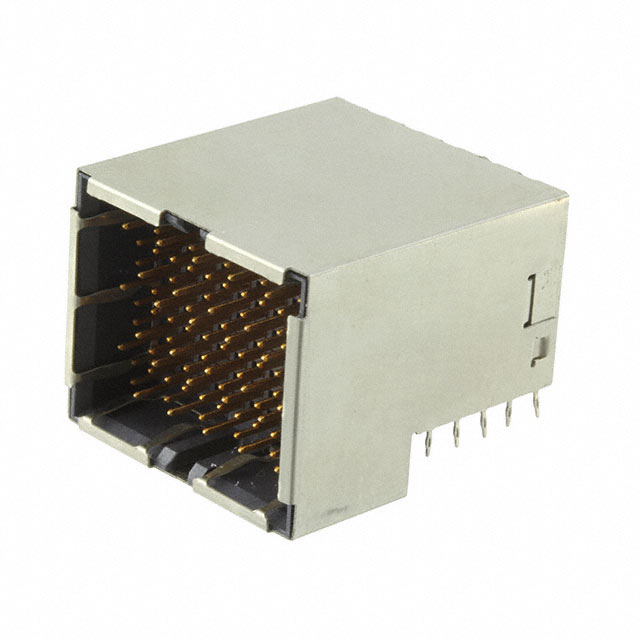

2102247-1
Or copy the link below:
- Mfr.Part #
- 2102247-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 90POS EDGE MNT
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Specialized
- Color :
- Black
- Orientation :
- RIGHT ANGLE
- Shrouding :
- Fully Shrouded
- Packaging :
- Tube
- Number of Positions :
- 90
- Number of Columns :
- 10
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Termination :
- Press-Fit
- Number of Rows :
- 9
- Contact Current Rating :
- 1.5A
- Contact Material :
- Bronze
- Mating Alignment :
- Without
- Housing Material :
- Polymer
- Current Rating :
- 1.5A
- RoHS Status :
- Non-RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -65°C~125°C
- Factory Lead Time :
- 11 Weeks
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Positions Loaded :
- All
- Mount :
- Through Hole
- Max Current Rating :
- 1.5A
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Row Spacing :
- 1.4 mm
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Connector Type :
- Header, Male Pins
- Published :
- 2014
- Flammability Rating :
- UL94 V-0
- Length :
- 24.55mm
- Feature :
- Shielded, Spacer
- Contact Finish :
- Gold
- Series :
- Fortis Zd
- Pitch :
- 48.26mm
- Connector Usage :
- Daughtercard
- Datasheets
- 2102247-1
Fortis Zd Series Header, Male Pins Press-Fit Gold Black 50.0μin 1.27μm 90 Positions Pitch: 48.26mm -65°C~125°C Tube Board Edge, Through Hole, Right Angle
2102247-1 Overview
A Header, Male Pins package is included with it.Its mounting type is Board Edge, Through Hole, Right Angle.Packaging is performed using a Tube case.It is part of the Fortis Zd Series of products.A number of features make it more powerful because of its Shielded, Spacer feature.Through Hole mounts the part.There is no operating temperature for the device.
2102247-1 Features
Fortis Zd series
2102247-1 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
2102247-1 Backplane Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
