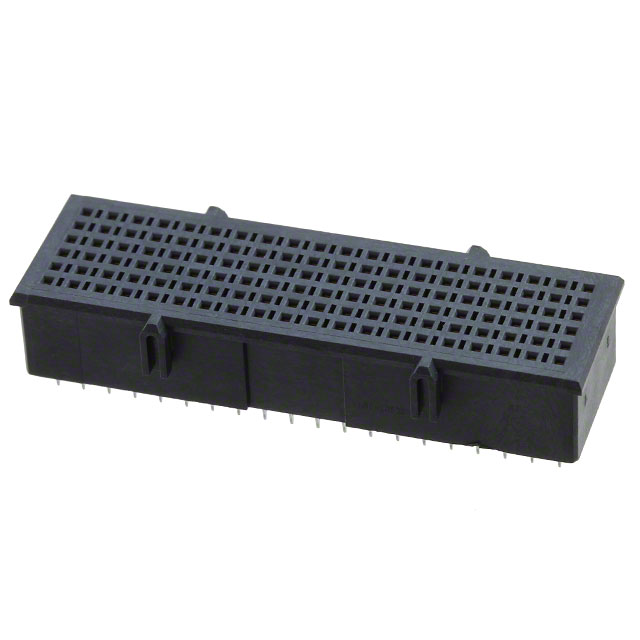

2102234-1
Or copy the link below:
- Mfr.Part #
- 2102234-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 120POS PCB
- Stock
- 23,543
- In Stock ：
- 23,543
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 23 Weeks
- Current Rating (Amps) :
- 1.5A
- Number of Pins :
- 120
- Number of Contacts :
- 120
- Mating Alignment :
- Without
- Mounting Type :
- Through Hole
- Termination :
- Press-Fit
- Number of Positions :
- 120
- Max Current Rating :
- 1.5A
- Connector Usage :
- Backplane, Orthogonal
- Number of Positions Loaded :
- All
- Housing Color :
- Black
- Number of Columns :
- 20
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Published :
- 2012
- Contact Finish Thickness :
- 50.0μin 1.27μm
- PCB Mounting Orientation :
- Vertical
- Shrouding :
- Unshrouded
- Color :
- Black
- Packaging :
- Bulk
- Series :
- Fortis Zd
- RoHS Status :
- Non-RoHS Compliant
- Contact Current Rating :
- 1.5A
- Orientation :
- Vertical
- Voltage - Rated :
- 250V
- Pitch :
- 48.26mm
- Contact Finish :
- Gold
- ELV :
- Non-Compliant
- Connector Type :
- Receptacle, Female Sockets
- Row Spacing :
- 60 µm
- Operating Temperature :
- -65°C~125°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 1.5A
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 6
- Contact Plating :
- Gold
- Datasheets
- 2102234-1
Fortis Zd Series Receptacle, Female Sockets Press-Fit Gold Black 50.0μin 1.27μm 120 Positions Pitch: 48.26mm -65°C~125°C Bulk Through Hole
2102234-1 Overview
The product is packaged in Receptacle, Female Sockets.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Fortis Zd Series.A total of 120 pins are available on the device.As a result, the device runs at -65°C~125°C Operating Temperature.
2102234-1 Features
Fortis Zd series
2102234-1 Applications
There are a lot of TE Connectivity AMP Connectors
2102234-1 Backplane Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
