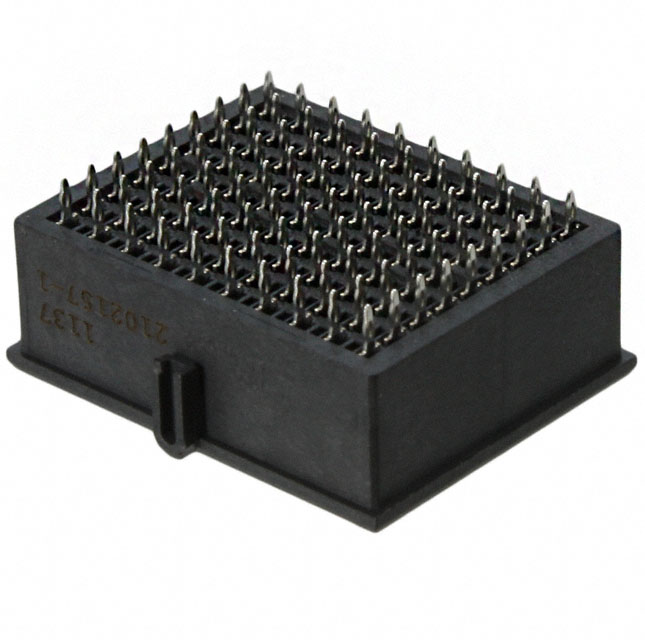

2102157-1
Or copy the link below:
- Mfr.Part #
- 2102157-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 90POS PCB
- Stock
- 6
- In Stock ：
- 6
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Specialized
- Connector Usage :
- Backplane, Motherboard
- Pitch :
- 1.9mm
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Termination :
- Press-Fit
- Current Rating :
- 1.5A
- Number of Rows :
- 9
- Row Spacing :
- 60 µm
- Gender :
- Receptacle
- IEC Conformance :
- No
- Contact Material :
- Copper
- ELV :
- Non-Compliant
- Shrouding :
- Unshrouded
- Color :
- Black
- Radiation Hardening :
- No
- Mount :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- Contact Current Rating :
- 1.5A
- Connector Type :
- Receptacle, Female Sockets
- MIL Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- REACH SVHC :
- Unknown
- DIN Conformance :
- No
- Number of Positions :
- 90
- Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- Option :
- GENERAL PURPOSE
- Number of Columns :
- 10
- Mixed Contacts :
- No
- Factory Lead Time :
- 17 Weeks
- Mounting Type :
- Through Hole
- Depth :
- 19.05mm
- Length :
- 21.3mm
- Max Current Rating :
- 1.5A
- Contact Layout, Typical :
- 30 Differential Pairs, 30 Ground
- Total Number of Contacts :
- 90
- Series :
- Fortis Zd
- Published :
- 2012
- Operating Temperature :
- -65°C~125°C
- Mating Alignment :
- Without
- Housing Material :
- Polymer
- Number of Positions Loaded :
- All
- Contact Finish :
- Gold
- RoHS Status :
- Non-RoHS Compliant
- Orientation :
- Vertical
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tray
- Datasheets
- 2102157-1
Fortis Zd Series Receptacle, Female Sockets Press-Fit Gold Black 50.0μin 1.27μm 90 Positions Pitch: 1.9mm -65°C~125°C Tray Through Hole
2102157-1 Overview
The packaging contains Receptacle, Female Sockets.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number Fortis Zd belongs to the Fortis Zd Series.There is a Through Hole mount on the part.This device operates at a temperature of -65°C~125°C.
2102157-1 Features
Fortis Zd series
2102157-1 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
2102157-1 Backplane Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
