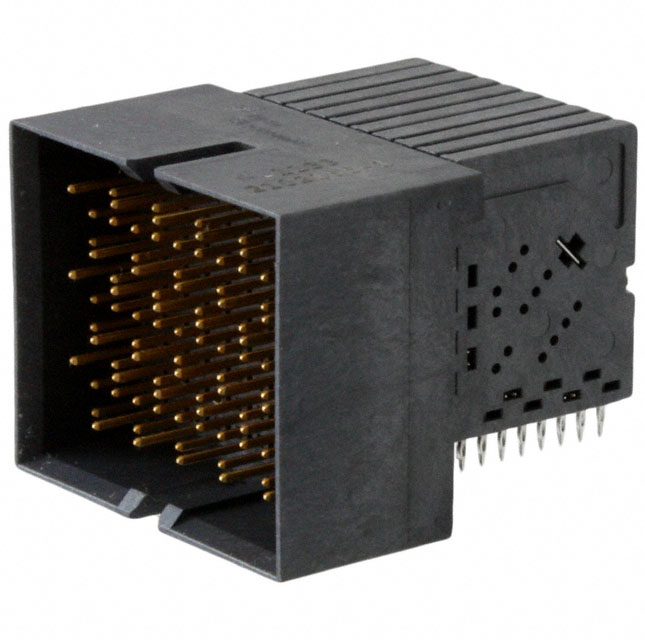

2102155-1
Or copy the link below:
- Mfr.Part #
- 2102155-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 90POS EDGE MNT
- Stock
- 2,126
- In Stock ：
- 2,126
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Specialized
- Shrouding :
- Fully Shrouded
- MIL Conformance :
- No
- DIN Conformance :
- No
- Current Rating :
- 1.5A
- Mixed Contacts :
- No
- Number of Positions Loaded :
- All
- Feature :
- Shielded
- Series :
- Fortis Zd
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Number of Columns :
- 10
- Pitch :
- 1.4mm
- Length :
- 24mm
- Contact Current Rating :
- 1.5A
- Connector Type :
- Header, Male Pins
- Color :
- Black
- Orientation :
- RIGHT ANGLE
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Layout, Typical :
- 30 Differential Pairs, 30 Ground
- Termination :
- Press-Fit
- Operating Temperature :
- -65°C~125°C
- Contact Finish :
- Gold
- REACH SVHC :
- Unknown
- Published :
- 2012
- Material Flammability Rating :
- UL94 V-0
- Mating Alignment :
- Without
- Option :
- GENERAL PURPOSE
- Depth :
- 25.54mm
- Gender :
- Male
- Number of Rows :
- 9
- Packaging :
- Tray
- Connector Usage :
- Daughtercard
- Housing Material :
- Polymer
- RoHS Status :
- Non-RoHS Compliant
- Filter Feature :
- No
- Contact Finish Thickness :
- 50.0μin 1.27μm
- ELV :
- Non-Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 23 Weeks
- Mount :
- Edge, Through Hole
- IEC Conformance :
- No
- Total Number of Contacts :
- 90
- Contact Material :
- Copper
- Row Spacing :
- 35.56 mm
- Max Current Rating :
- 1.5A
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 90
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Datasheets
- 2102155-1
Fortis Zd Series Header, Male Pins Press-Fit Gold Black 50.0μin 1.27μm 90 Positions Pitch: 1.4mm -65°C~125°C Tray Board Edge, Through Hole, Right Angle
2102155-1 Overview
Packaging for this item is Header, Male Pins.There is a mounting type of Board Edge, Through Hole, Right Angle for this device.It is necessary to use a Tray case for packaging the product.This product is part of the Fortis Zd Series.In many ways, its Shielded feature makes it more powerful.Edge, Through Hole is used to mount the part.In this case, the device operates at -65°C~125°C Operating Temperature.
2102155-1 Features
Fortis Zd series
2102155-1 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
2102155-1 Backplane Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
