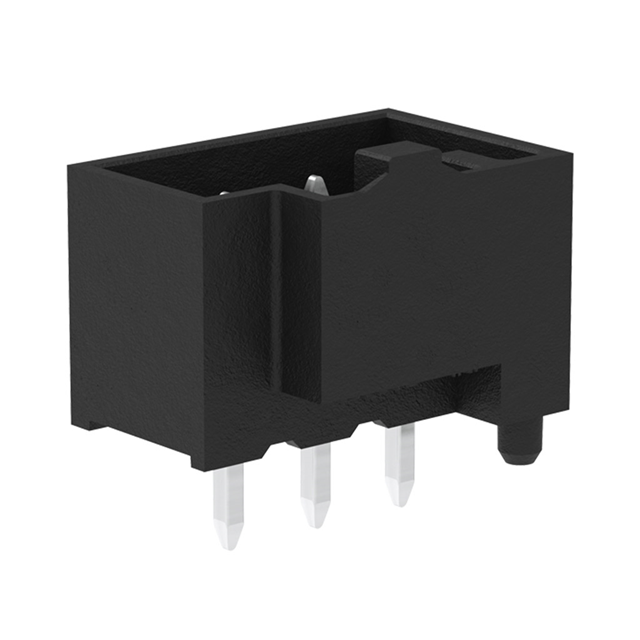

2092080003

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Pitch :

3 mm

Mounting Angle :

Straight

Product Depth (mm) :

7.48(mm)

Number of Rows :

1 Row

Number of Positions :

3 Position

RoHS :

Details

Current Rating (Amps) :

Varies by Wire Gauge

Fastening Type :

Latch Holder

Mounting Style :

Through Hole

Series :

209208

Gender :

HDR

Style :

Board to Cable/Wire

Product Length (mm) :

11.12(mm)

Application :

Power, Wire-to-Board

Contact Finish Thickness - Mating :

-

Connector Type :

Header

Orientation :

Vertical

Contact Type :

Male Pin

Contact Gender :

Pin (Male)

Packaging :

Tray

Body Orientation :

Straight

Contact Finish Thickness - Post :

-

Termination :

Solder

Product :

Headers

Contact Resistance Max :

10(mohm)

Tradename :

L1NK 300

Pitch - Mating :

0.118 (3.00mm)

Ingress Protection :

-

Applications :

-

Number of Contact Rows :

1

Operating Temp Range :

-40C to 105C

Base Product Number :

209208

Pitch (mm) :

3(mm)

Contact Length - Post :

0.124 (3.15mm)

Housing Color :

Black

Features :

Board Guide

Mated Stacking Heights :

-

Color :

Black

Insulation Color :

Black

Mounting Type :

Through Hole

Contact Length - Mating :

-

Material Flammability Rating :

UL94 V-0

Maximum Operating Temperature :

+ 105 C

Product Height (mm) :

7.07(mm)

Contact Shape :

Square

Insulation Material :

Liquid Crystal Polymer (LCP)

Voltage Rating :

250VAC/DC

Overall Contact Length :

-

Type :

SHROUDED

Product Status :

Active

Contact Finish - Mating :

Tin

Package :

Tray

Row Spacing - Mating :

-

Contact Finish - Post :

Tin

Current Rating (Max) :

11/Contact(A)

Operating Temperature :

-40°C ~ 105°C

Voltage Rating Max :

250VDC/250VAC

Contact Material :

COPPER ALLOY

Minimum Operating Temperature :

- 40 C

Stackable :

No

Contact Plating :

Tin

Termination Method :

Solder

Insulation Height :

0.278 (7.06mm)

Shrouding :

Shrouded - 4 Wall

Number of Positions Loaded :

All

Number of Contacts :

3(POS)

Termination Style :

Solder Pin
