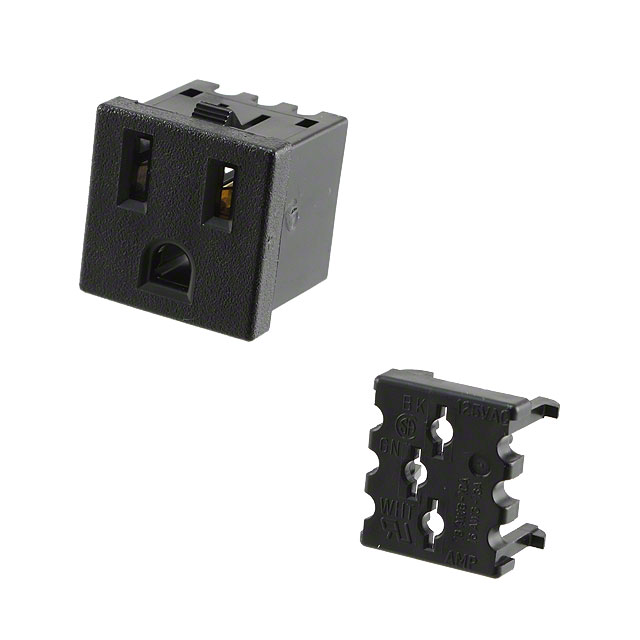

208697-2
Or copy the link below:
- Mfr.Part #
- 208697-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- PWR ENT RCPT NEMA5-15 PANEL IDC
- Stock
- 29,313
- In Stock ：
- 29,313
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Plugs and Receptacles
- Published :
- 2004
- Depth :
- 30.35mm
- Option :
- GENERAL PURPOSE
- Accomodates a Fuse :
- No
- Additional Feature :
- ALSO ACCEPTS FASTON 205 SERIES TABS
- Number of Ports :
- 1
- Contact Plating :
- Tin
- Total Number of Contacts :
- 3
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Brass
- Voltage - UL :
- 125VAC
- ECCN Code :
- EAR99
- Color :
- Black
- Number of Terminations :
- 3
- Housing Material :
- Nylon
- Voltage :
- 125V
- ELV :
- Compliant
- Panel Thickness :
- 0.030 ~ 0.070 0.76mm ~ 1.78mm
- REACH SVHC :
- No SVHC
- Factory Lead Time :
- 14 Weeks
- Length :
- 26.92mm
- Approval Agency :
- CSA, UL
- Packaging :
- Bulk
- Connector Style :
- NEMA 5-15R
- Panel Cutout Dimensions :
- Square - 24.59mm x 24.59mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Orientation :
- Straight
- Current :
- 15A
- Current Rating :
- 10A
- IEC Conformance :
- No
- Gender :
- Receptacle
- Max Current Rating :
- 15A
- DIN Conformance :
- No
- Mounting Type :
- Panel Mount, Snap-In
- MIL Conformance :
- No
- Lead Free :
- Lead Free
- Connector Type :
- Receptacle, Female Sockets
- Mount :
- Panel, Snap in
- RoHS Status :
- RoHS Compliant
- Contact Gender :
- FEMALE
- Height :
- 26.9mm
- Filter Type :
- Unfiltered - Commercial
- Pbfree Code :
- yes
- Termination :
- IDC
- Datasheets
- 208697-2
