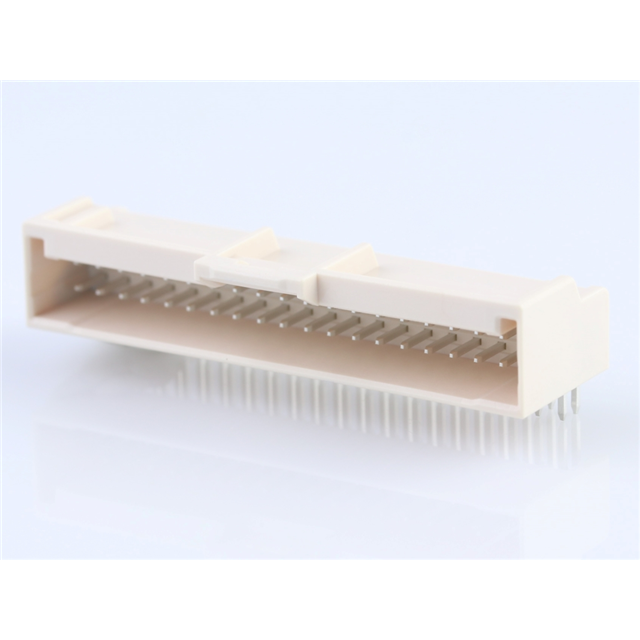

2086594040

Manufacturer :

Molex

Product Category :

Headers, Male Pins

IP Rating :

-

Termination Style :

Solder Pin

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Pitch :

2 mm

Termination Post Length :

3.2 mm

Package :

Tray

Fastening Type :

Latch Lock

Tradename :

iGrid

Current Rating (Amps) :

Varies by Wire Gauge

Mounting Type :

Through Hole, Right Angle

Style :

Board to Cable/Wire

Voltage Rating :

250 VAC/DC

Ingress Protection :

-

RoHS :

Details

Number of Rows :

2 Row

Contact Shape :

Square

Features :

-

Number of Positions Loaded :

All

Mounting Angle :

RIGHT ANGLE

Material Flammability Rating :

UL94 V-0

Housing Material :

Polyamide (PA)

Minimum Operating Temperature :

- 40 C

Mounting Style :

Through Hole

Maximum Operating Temperature :

+ 105 C

Product Status :

Active

Insulation Color :

Natural

Number of Positions :

40 Position

Insulation Height :

0.327 (8.30mm)

Series :

208659

Shrouding :

Shrouded - 4 Wall

Contact Length - Post :

0.126 (3.20mm)

Pitch - Mating :

0.079 (2.00mm)

Row Spacing :

2 mm

Base Product Number :

208659

Contact Plating :

Gold

Contact Type :

-

Flammability Rating :

UL 94 V-0

Contact Finish - Post :

Tin

Applications :

-

Packaging :

Tray

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Product :

Headers

Application :

Signal, Wire-to-Board

Row Spacing - Mating :

0.079 (2.00mm)

Contact Length - Mating :

-

Connector Type :

PLUG

Overall Contact Length :

-

Contact Material :

Brass

Current Rating :

2 A

Type :

SHROUDED

Operating Temperature :

-40°C ~ 105°C

Contact Finish - Mating :

Gold

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Gender :

Pin (Male)

Termination :

Solder

Mated Stacking Heights :

-

Housing Gender :

-
