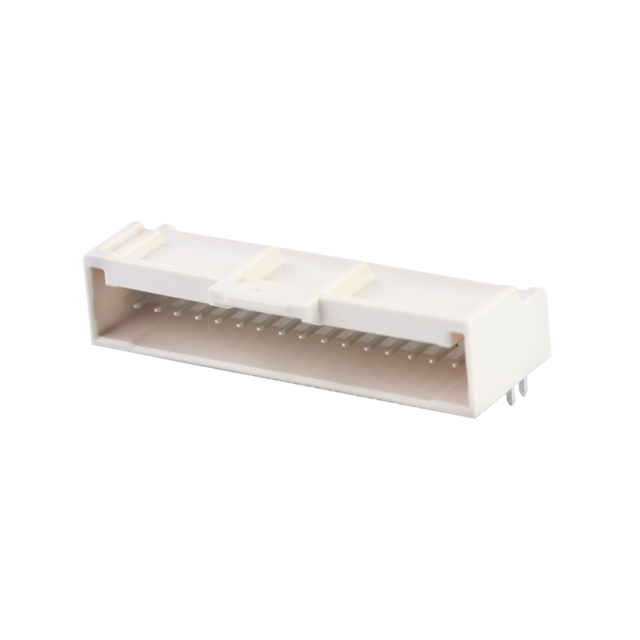

2086593440

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Fastening Type :

Latch Lock

Current Rating (Amps) :

Varies by Wire Gauge

Mated Stacking Heights :

-

Number of Positions Loaded :

All

Ingress Protection :

-

Base Product Number :

208659

Pitch :

2 mm

Housing Material :

Polyamide (PA)

Package :

Tray

Operating Temperature :

-40°C ~ 105°C

Series :

208659

Packaging :

Tray

Current Rating :

2 A

Mounting Angle :

RIGHT ANGLE

Number of Rows :

2 Row

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Features :

-

Mounting Type :

Through Hole, Right Angle

Contact Finish - Mating :

Gold

Product :

Headers

RoHS :

Details

Type :

SHROUDED

Overall Contact Length :

-

Contact Length - Mating :

-

Contact Length - Post :

0.126 (3.20mm)

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Connector Type :

PLUG

Insulation Color :

Beige

Pitch - Mating :

0.079 (2.00mm)

Minimum Operating Temperature :

- 40 C

Style :

Board to Cable/Wire

Insulation Height :

0.327 (8.30mm)

Termination Style :

Solder Pin

Maximum Operating Temperature :

+ 105 C

Application :

Signal, Wire-to-Board

Voltage Rating :

250 VAC/DC

IP Rating :

-

Number of Positions :

34 Position

Applications :

-

Contact Plating :

Gold

Flammability Rating :

UL 94 V-0

Row Spacing :

2 mm

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Finish - Post :

Tin

Housing Gender :

-

Termination Post Length :

3.2 mm

Contact Gender :

Pin (Male)

Row Spacing - Mating :

0.079 (2.00mm)

Termination :

Solder

Contact Shape :

Square

Contact Material :

Brass

Shrouding :

Shrouded - 4 Wall

Material Flammability Rating :

UL94 V-0

Product Status :

Active

Contact Type :

-

Mounting Style :

Through Hole

Tradename :

iGrid
