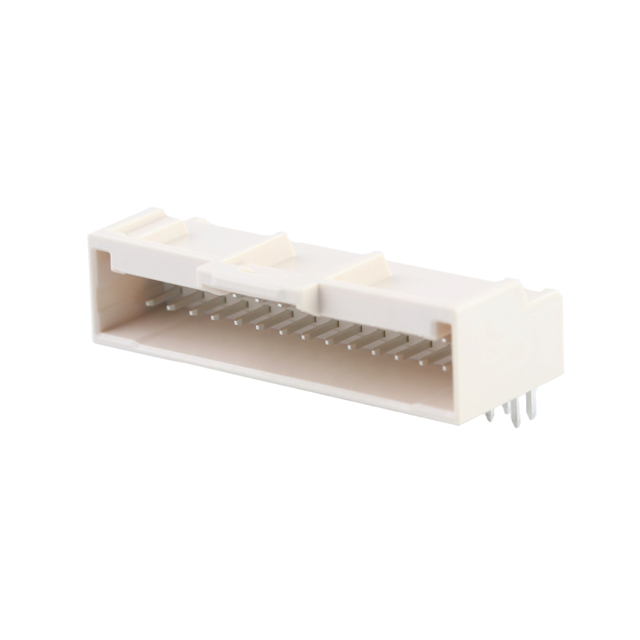

2086593040

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Operating Temperature :

-40°C ~ 105°C

Features :

-

Contact Length - Post :

0.126 (3.20mm)

Row Spacing - Mating :

0.079 (2.00mm)

RoHS :

Details

Shrouding :

Shrouded - 4 Wall

Overall Contact Length :

-

Pitch :

2 mm

Contact Plating :

Gold

Contact Material :

Brass

Housing Gender :

-

Package :

Tray

Contact Length - Mating :

-

Style :

Board to Cable/Wire

Termination Post Length :

3.2 mm

Type :

SHROUDED

Application :

Signal, Wire-to-Board

Mounting Angle :

RIGHT ANGLE

Mounting Style :

Through Hole

Termination :

Solder

Number of Positions Loaded :

All

Contact Finish - Mating :

Gold

Packaging :

Tray

Fastening Type :

Latch Lock

Contact Type :

-

Row Spacing :

2 mm

Voltage Rating :

250 VAC/DC

Applications :

-

Termination Style :

Solder Pin

Connector Type :

PLUG

Number of Rows :

2 Row

Insulation Color :

Beige

IP Rating :

-

Product Status :

Active

Current Rating :

2 A

Current Rating (Amps) :

Varies by Wire Gauge

Contact Gender :

Pin (Male)

Insulation Height :

0.327 (8.30mm)

Mated Stacking Heights :

-

Contact Finish - Post :

Tin

Number of Positions :

30 Position

Minimum Operating Temperature :

- 40 C

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Flammability Rating :

UL 94 V-0

Contact Shape :

Square

Pitch - Mating :

0.079 (2.00mm)

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Product :

Headers

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Series :

208659

Ingress Protection :

-

Base Product Number :

208659

Tradename :

iGrid

Housing Material :

Polyamide (PA)

Mounting Type :

Through Hole, Right Angle

Material Flammability Rating :

UL94 V-0

Maximum Operating Temperature :

+ 105 C
