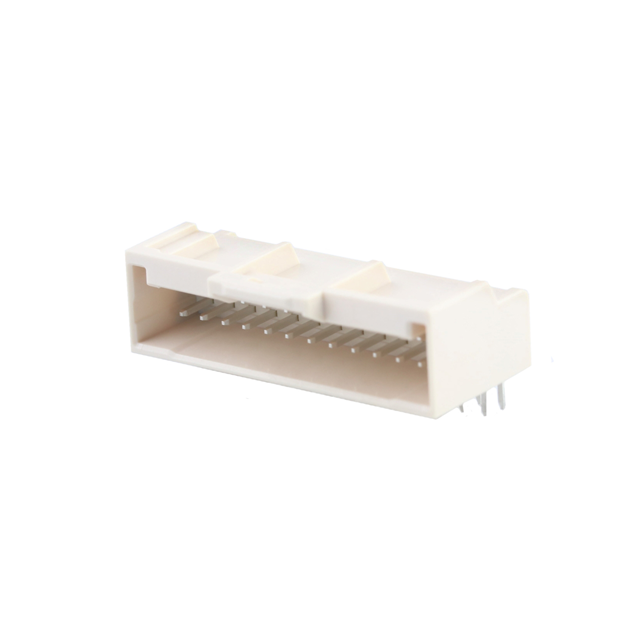

2086592640

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Housing Material :

Polyamide (PA)

Pitch - Mating :

0.079 (2.00mm)

Mated Stacking Heights :

-

Fastening Type :

Latch Lock

Style :

Board to Cable/Wire

Series :

208659

Current Rating (Amps) :

Varies by Wire Gauge

Flammability Rating :

UL 94 V-0

Termination Post Length :

3.2 mm

Number of Positions Loaded :

All

Features :

-

Contact Finish - Mating :

Gold

Number of Rows :

2 Row

Pitch :

2 mm

Contact Plating :

Gold

Ingress Protection :

-

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Mounting Angle :

RIGHT ANGLE

Minimum Operating Temperature :

- 40 C

Contact Gender :

Pin (Male)

Contact Type :

-

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Termination Style :

Solder Pin

Operating Temperature :

-40°C ~ 105°C

Number of Positions :

26 Position

Contact Shape :

Square

Product Status :

Active

Current Rating :

2 A

Connector Type :

PLUG

Application :

Signal, Wire-to-Board

Mounting Style :

Through Hole

Tradename :

iGrid

Overall Contact Length :

-

Applications :

-

Packaging :

Tray

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Base Product Number :

208659

Product :

Headers

Contact Length - Post :

0.126 (3.20mm)

Maximum Operating Temperature :

+ 105 C

Termination :

Solder

Material Flammability Rating :

UL94 V-0

Row Spacing - Mating :

0.079 (2.00mm)

Contact Finish - Post :

Tin

Package :

Tray

Contact Length - Mating :

-

Insulation Color :

Beige

Shrouding :

Shrouded - 4 Wall

RoHS :

Details

Row Spacing :

2 mm

Housing Gender :

-

Type :

SHROUDED

Mounting Type :

Through Hole, Right Angle

IP Rating :

-

Contact Material :

Brass

Voltage Rating :

250 VAC/DC

Insulation Height :

0.327 (8.30mm)
