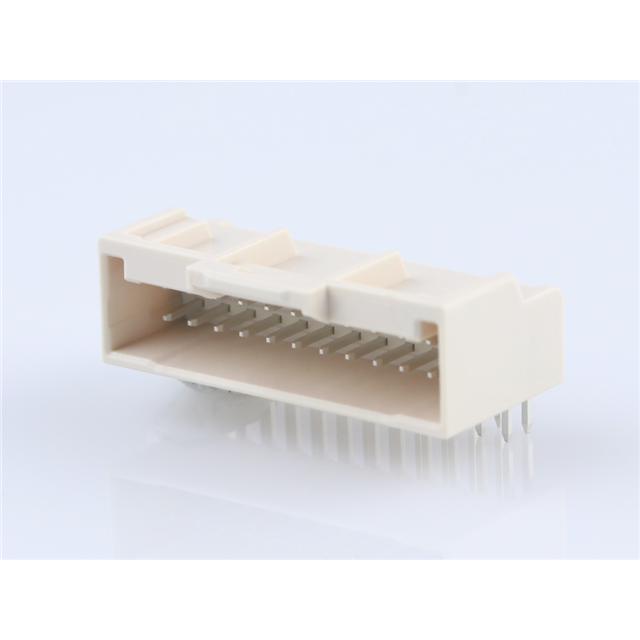

2086592440

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Insulation Height :

0.327 (8.30mm)

Contact Finish - Post :

Tin

Overall Contact Length :

-

Ingress Protection :

-

Fastening Type :

Latch Lock

Type :

SHROUDED

Number of Contacts :

24

Current Rating (Amps) :

Varies by Wire Gauge

Contact Plating :

Gold

Termination :

Solder

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Flammability Rating :

UL 94 V-0

Body Orientation :

RIGHT ANGLE

Shrouding :

Shrouded - 4 Wall

Mounting Type :

Through Hole, Right Angle

Application :

Signal, Wire-to-Board

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Housing Gender :

-

Gender :

Header

Packaging :

Tray

Pitch :

2 mm

IP Rating :

-

Voltage Rating :

250 VAC/DC

Operating Temperature :

-40 to 105 °C

Contact Type :

-

Number of Positions Loaded :

All

Pitch - Mating :

0.079 (2.00mm)

Package :

Tray

Applications :

-

Series :

208659

Product Status :

Active

Current Rating :

2 A

Mounting :

Through Hole

Contact Finish - Mating :

Gold

Features :

-

Mounting Angle :

RIGHT ANGLE

Mounting Style :

Through Hole

Contact Gender :

Pin (Male)

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Length - Mating :

-

Minimum Operating Temperature :

- 40 C

Number of Rows :

2 Row

Base/Housing Material :

Glass Filled Polyamide

Row Spacing - Mating :

0.079 (2.00mm)

RoHS :

Details

Row Spacing :

2 mm

Contact Shape :

Square

Housing Material :

Polyamide (PA)

Housing Color :

Beige

Connector Type :

PLUG

Base Product Number :

208659

Termination Post Length :

3.2 mm

Product :

Headers

Tradename :

iGrid

Contact Material :

Brass

Maximum Operating Temperature :

+ 105 C

Contact Length - Post :

0.126 (3.20mm)

Insulation Color :

Natural

Termination Method :

Solder

Mated Stacking Heights :

-

Product Length :

26 mm

Style :

Board to Cable/Wire

Termination Style :

Solder Pin

Number of Positions :

24 Position
