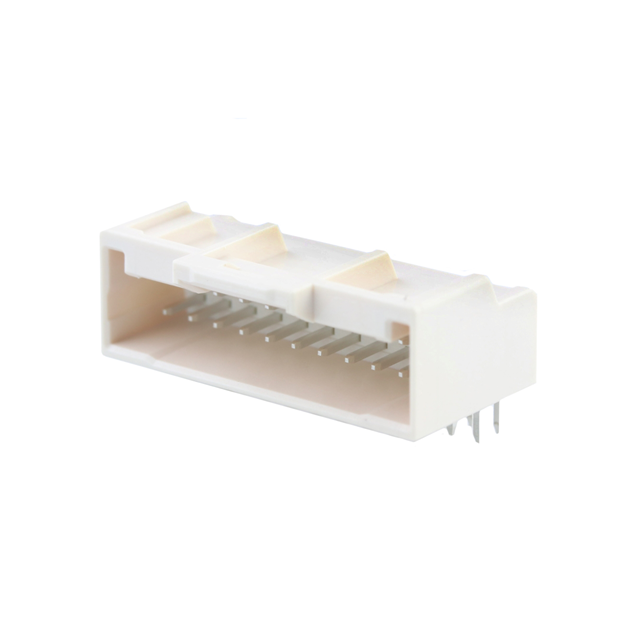

2086592240

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Operating Temperature :

-40°C ~ 105°C

Number of Rows :

2 Row

RoHS :

Details

Contact Gender :

Pin (Male)

Contact Material :

Brass

Mounting Type :

Through Hole, Right Angle

Product Status :

Active

Connector Type :

PLUG

Type :

SHROUDED

Mated Stacking Heights :

-

Product :

Headers

Ingress Protection :

-

Housing Material :

Polyamide (PA)

Tradename :

iGrid

Housing Gender :

-

Maximum Operating Temperature :

+ 105 C

Contact Length - Post :

0.126 (3.20mm)

Applications :

-

Number of Positions :

22 Position

Current Rating :

2 A

Number of Positions Loaded :

All

Pitch :

2 mm

Features :

-

Material Flammability Rating :

UL94 V-0

Contact Length - Mating :

-

Mounting Angle :

RIGHT ANGLE

Mounting Style :

Through Hole

Termination Style :

Solder Pin

Row Spacing - Mating :

0.079 (2.00mm)

Contact Plating :

Gold

Contact Shape :

Square

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Contact Finish - Post :

Tin

Packaging :

Tray

IP Rating :

-

Voltage Rating :

250 VAC/DC

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Finish - Mating :

Gold

Current Rating (Amps) :

Varies by Wire Gauge

Insulation Color :

Beige

Fastening Type :

Latch Lock

Series :

208659

Base Product Number :

208659

Application :

Signal, Wire-to-Board

Row Spacing :

2 mm

Contact Type :

-

Shrouding :

Shrouded - 4 Wall

Package :

Tray

Overall Contact Length :

-

Insulation Height :

0.327 (8.30mm)

Style :

Board to Cable/Wire

Termination Post Length :

3.2 mm

Flammability Rating :

UL 94 V-0

Minimum Operating Temperature :

- 40 C

Pitch - Mating :

0.079 (2.00mm)

Termination :

Solder

Insulation Material :

Polyamide (PA), Nylon, Glass Filled
