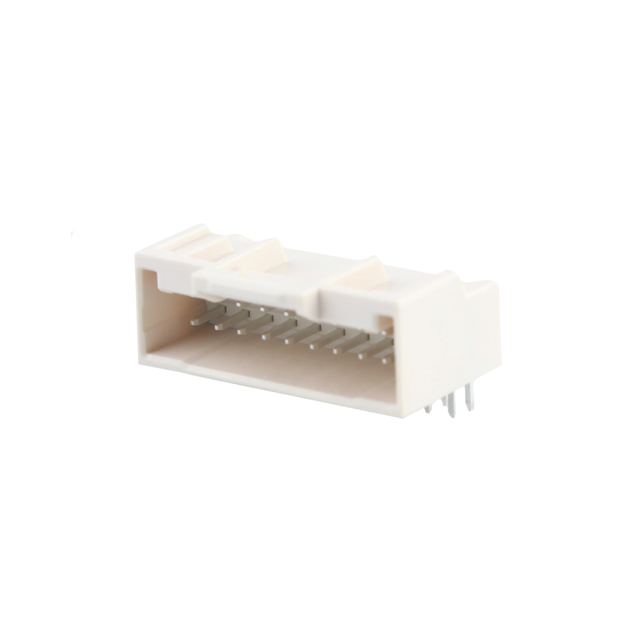

2086592040

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Pitch - Mating :

0.079 (2.00mm)

Row Spacing :

2 mm

Termination Post Length :

3.2 mm

Contact Shape :

Square

Maximum Operating Temperature :

+ 105 C

Number of Positions Loaded :

All

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Overall Contact Length :

-

Applications :

-

Termination Style :

Solder Pin

IP Rating :

-

Packaging :

Tray

Shrouding :

Shrouded - 4 Wall

Series :

208659

Row Spacing - Mating :

0.079 (2.00mm)

Tradename :

iGrid

Fastening Type :

Latch Lock

Number of Rows :

2 Row

Operating Temperature :

-40°C ~ 105°C

Type :

SHROUDED

Contact Finish - Post :

Tin

Voltage Rating :

250 VAC/DC

Style :

Board to Cable/Wire

Product :

Headers

Minimum Operating Temperature :

- 40 C

Contact Finish - Mating :

Gold

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Features :

-

Material Flammability Rating :

UL94 V-0

Insulation Color :

Beige

Contact Material :

Brass

Termination :

Solder

Package :

Tray

Flammability Rating :

UL 94 V-0

Ingress Protection :

-

Insulation Height :

0.327 (8.30mm)

Contact Type :

-

Pitch :

2 mm

Contact Length - Mating :

-

Mounting Type :

Through Hole, Right Angle

Connector Type :

PLUG

Number of Positions :

20 Position

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Current Rating :

2 A

Product Status :

Active

Current Rating (Amps) :

Varies by Wire Gauge

Mounting Style :

Through Hole

Base Product Number :

208659

Mated Stacking Heights :

-

Contact Gender :

Pin (Male)

Contact Plating :

Gold

Mounting Angle :

RIGHT ANGLE

Application :

Signal, Wire-to-Board

Housing Material :

Polyamide (PA)

Housing Gender :

-

RoHS :

Details

Contact Length - Post :

0.126 (3.20mm)
