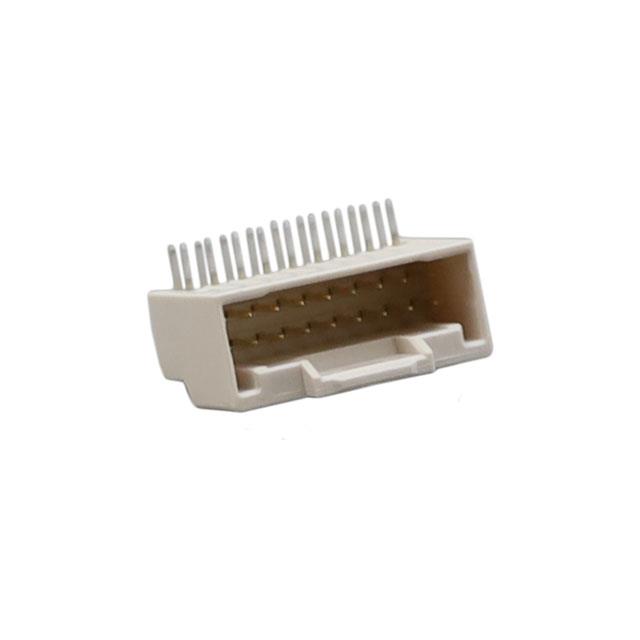

2086591840

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Termination Style :

Solder Pin

Contact Plating :

Gold

Packaging :

Tray

Style :

Board to Cable/Wire

Flammability Rating :

UL 94 V-0

Series :

208659

Base Product Number :

208659

Current Rating :

2 A

Number of Rows :

2 Row

Pitch - Mating :

0.079 (2.00mm)

Maximum Operating Temperature :

+ 105 C

Tradename :

iGrid

Termination :

Solder

Fastening Type :

Latch Lock

Material Flammability Rating :

UL94 V-0

Application :

Signal, Wire-to-Board

Contact Material :

Brass

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Finish - Post :

Tin

Connector Type :

PLUG

IP Rating :

-

Contact Gender :

Pin (Male)

Pitch :

2 mm

Mounting Angle :

RIGHT ANGLE

Product :

Headers

Voltage Rating :

250 VAC/DC

Row Spacing :

2 mm

Minimum Operating Temperature :

- 40 C

Contact Finish - Mating :

Gold

Overall Contact Length :

-

Contact Type :

-

Row Spacing - Mating :

0.079 (2.00mm)

Mated Stacking Heights :

-

Features :

-

RoHS :

Details

Housing Gender :

-

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Insulation Color :

Beige

Contact Length - Mating :

-

Ingress Protection :

-

Shrouding :

Shrouded - 4 Wall

Type :

SHROUDED

Number of Positions :

18 Position

Termination Post Length :

3.2 mm

Operating Temperature :

-40°C ~ 105°C

Package :

Tray

Number of Positions Loaded :

All

Insulation Height :

0.327 (8.30mm)

Housing Material :

Polyamide (PA)

Product Status :

Active

Mounting Style :

Through Hole

Contact Length - Post :

0.126 (3.20mm)

Mounting Type :

Through Hole, Right Angle

Current Rating (Amps) :

Varies by Wire Gauge

Applications :

-

Contact Shape :

Square

Contact Finish Thickness - Mating :

3.94µin (0.100µm)
