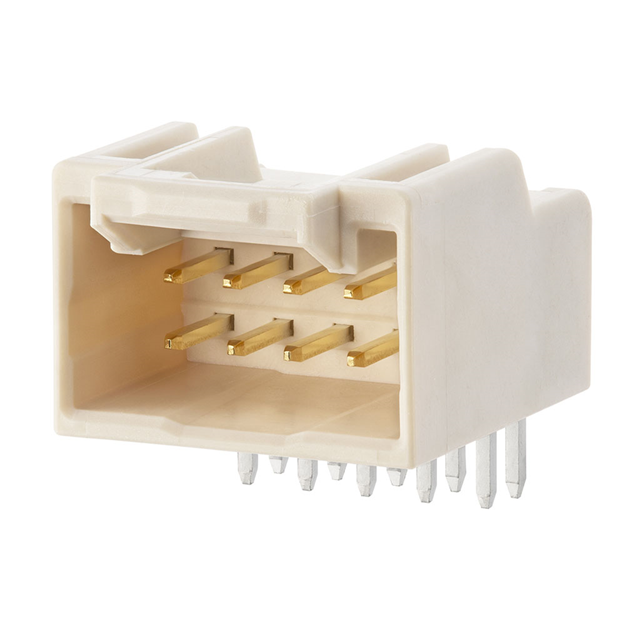

2086591440

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Length - Mating :

-

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Resistance Max :

20(mohm)

Housing Color :

Natural

Overall Contact Length :

-

Housing Gender :

-

Application :

Signal, Wire-to-Board

Pitch (mm) :

2(mm)

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Contact Plating :

Gold

Product Height (mm) :

8.3(mm)

Termination :

Solder

Number of Rows :

2 Row

Contact Shape :

Square

Number of Contact Rows :

2

Termination Method :

Solder

Number of Positions Loaded :

All

RoHS :

Details

Contact Gender :

Pin (Male)

Product Length (mm) :

16(mm)

Termination Style :

Solder Pin

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Current Rating :

2 A

Features :

-

Pitch - Mating :

0.079 (2.00mm)

Minimum Operating Temperature :

- 40 C

Voltage Rating :

250 VAC/DC

Contact Finish - Post :

Tin

Row Spacing :

2 mm

Row Spacing - Mating :

0.079 (2.00mm)

Packaging :

Tray

Package :

Tray

Maximum Operating Temperature :

+ 105 C

Insulation Height :

0.327 (8.30mm)

Applications :

-

Series :

208659

Gender :

HDR

Material Flammability Rating :

UL94 V-0

Number of Positions :

14 Position

Housing Material :

Polyamide (PA)

Mounting Angle :

RIGHT ANGLE

Ingress Protection :

-

Mounting Style :

Through Hole

Style :

Board to Cable/Wire

Contact Finish - Mating :

Gold

Body Orientation :

RIGHT ANGLE

Pitch :

2 mm

Insulation Color :

Beige

Operating Temp Range :

-40C to 105C

Contact Material :

Brass

Shrouding :

Shrouded - 4 Wall

Fastening Type :

Latch Lock

Flammability Rating :

UL 94 V-0

Product :

Headers

Number of Contacts :

14(POS)

IP Rating :

-

Mounting Type :

Through Hole, Right Angle

Operating Temperature :

-40°C ~ 105°C

Base Product Number :

208659

Tradename :

iGrid

Current Rating (Max) :

2/Contact(A)

Current Rating (Amps) :

Varies by Wire Gauge

Product Depth (mm) :

14.5(mm)

Mated Stacking Heights :

-

Contact Type :

-

Contact Length - Post :

0.126 (3.20mm)

Voltage Rating Max :

250VDC/250VAC

Termination Post Length :

3.2 mm

Type :

SHROUDED

Connector Type :

PLUG

Product Status :

Active
