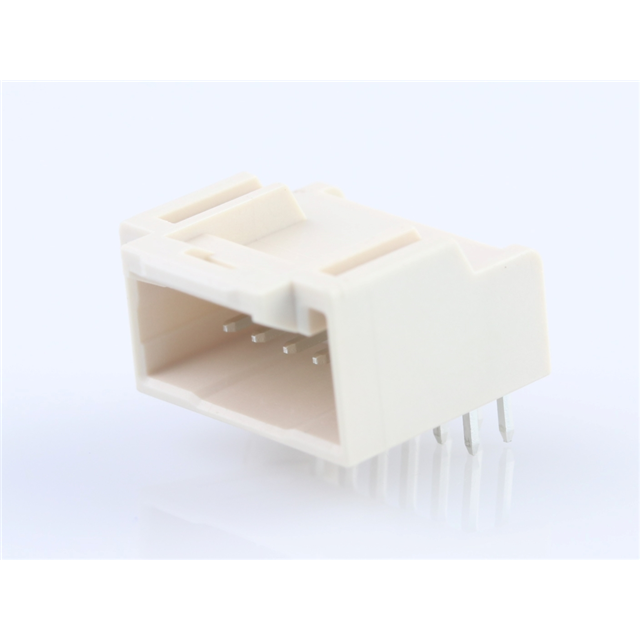

2086591240

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Product :

Headers

Housing Material :

Polyamide (PA)

Voltage Rating :

250 VAC/DC

Minimum Operating Temperature :

- 40 C

Contact Type :

-

Number of Positions :

12 Position

Contact Length - Mating :

-

Maximum Operating Temperature :

+ 105 C

Contact Finish - Mating :

Gold

Contact Finish - Post :

Tin

Contact Shape :

Square

Row Spacing :

2 mm

Contact Length - Post :

0.126 (3.20mm)

Base Product Number :

208659

Overall Contact Length :

-

Number of Rows :

2 Row

Row Spacing - Mating :

0.079 (2.00mm)

Ingress Protection :

-

Current Rating (Amps) :

Varies by Wire Gauge

Contact Plating :

Gold

Contact Finish Thickness - Mating :

3.94µin (0.100µm)

Operating Temperature :

-40°C ~ 105°C

Flammability Rating :

UL 94 V-0

Termination Style :

Solder Pin

Fastening Type :

Latch Lock

Product Status :

Active

Shrouding :

Shrouded - 4 Wall

Packaging :

Tray

Pitch :

2 mm

Pitch - Mating :

0.079 (2.00mm)

Mated Stacking Heights :

-

Termination :

Solder

RoHS :

Details

Tradename :

iGrid

Applications :

-

Number of Positions Loaded :

All

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Insulation Material :

Polyamide (PA), Nylon, Glass Filled

Mounting Angle :

RIGHT ANGLE

Type :

SHROUDED

Application :

Signal, Wire-to-Board

Style :

Board to Cable/Wire

Termination Post Length :

3.2 mm

Contact Material :

Brass

Connector Type :

PLUG

Contact Gender :

Pin (Male)

Current Rating :

2 A

Features :

-

IP Rating :

-

Package :

Tray

Insulation Color :

Natural

Mounting Type :

Through Hole, Right Angle

Housing Gender :

-

Series :

208659

Mounting Style :

Through Hole

Insulation Height :

0.327 (8.30mm)
