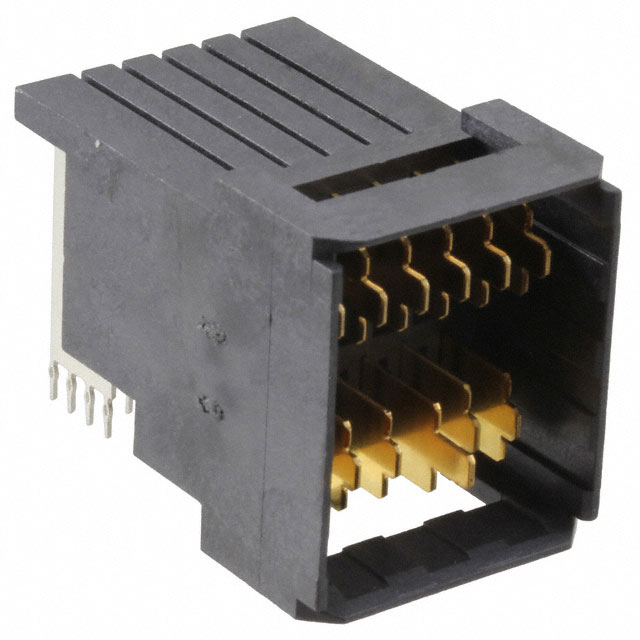

2085200-3
Or copy the link below:
- Mfr.Part #
- 2085200-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 12POS EDGE MNT
- Stock
- 16,888
- In Stock ：
- 16,888
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Finish :
- Gold or Gold-Palladium
- Row Spacing :
- 11.5 mm
- Sealable :
- No
- Published :
- 2009
- Current Rating :
- 17A
- Contact Current Rating :
- 17A
- Max Operating Temperature :
- 105°C
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Housing Material :
- Polyester
- PCB Mounting Orientation :
- RIGHT ANGLE
- Min Operating Temperature :
- -40°C
- Packaging :
- Bulk
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Connector Type :
- Plug, Male Blades
- Series :
- MINIPAK HDE
- Contact Material :
- Copper
- Material Flammability Rating :
- UL94 V-0
- Circuit Application :
- Power
- Operating Supply Voltage :
- 250V
- Number of Rows :
- 2
- Termination :
- Press-Fit
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Color :
- Black
- Number of Contacts :
- 12
- Contact Plating :
- Tin
- Number of Positions :
- 12
- Contact Layout, Typical :
- 12 Power
- Factory Lead Time :
- 25 Weeks
- Housing Color :
- Black
- Pitch :
- 2.9972mm
- RoHS Status :
- RoHS Compliant
- Number of Power Positions :
- 12
- Number of Signal Positions :
- 0
- Contact Retention :
- With
- Orientation :
- RIGHT ANGLE
- Plating Thickness :
- 1.27μm
- ELV :
- Compliant
- Flammability Rating :
- UL94 V-0
- Datasheets
- 2085200-3
MINIPAK HDE Series Plug, Male Blades Press-Fit Gold or Gold-Palladium Black 12 Positions Pitch: 2.9972mm Bulk Board Edge, Through Hole, Right Angle
2085200-3 Overview
This product is packaged in a Plug, Male Blades box.Board Edge, Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the MINIPAK HDE Series.Use it below 105°C.A minimum temperature of -40°C must be maintained for the operation of this device.The Backplane Connector is capable of working with a supply voltage of 250V.
2085200-3 Features
MINIPAK HDE series
2085200-3 Applications
There are a lot of TE Connectivity AMP Connectors
2085200-3 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
