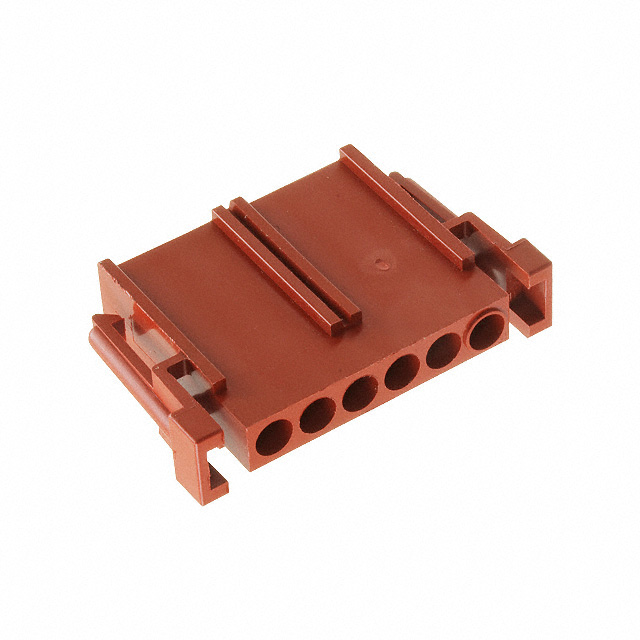

208117-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Rectangular Connector Housings

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Max Operating Temperature :

130°C

Operating Supply Voltage :

600V

IEC Conformance :

No

Filter Feature :

No

DIN Conformance :

No

Connector Type :

PLUG

Contact Type :

Female Socket

Reliability :

COMMERCIAL

Orientation :

Straight

Voltage - Rated :

600V

RoHS Status :

RoHS Compliant

Gender :

Male

Mount :

Cable, Free Hanging

Number of Positions :

6

Housing Material :

Nylon

Lead Free :

Not Applicable

Packaging :

Bulk

ECCN Code :

EAR99

Total Number of Contacts :

6

Feature :

Polarizing Key

VDE Tested :

yes

Empty Shell :

yes

Termination :

Crimp

Width :

9.14mm

Insertion Force-Max :

.3058 N

Lifecycle Status :

ACTIVE (Last Updated: 4 months ago)

Additional Feature :

POLARIZED, LATCH

Mounting Type :

Free Hanging (In-Line)

ELV :

Compliant

Color :

Red

Shell Material :

POLYETHYLENE

Wire/Cable Type :

Discrete

Mixed Contacts :

No

UL Flammability Code :

94V-0

Note :

Contacts Not Included

Polarization Key :

POLARIZED HOUSING

Pbfree Code :

yes

Fastening Type :

Latch Lock

Contact Finish - Mating :

NOT SPECIFIED

Published :

2005

Factory Lead Time :

10 Weeks

Depth :

28.19mm

Length :

43.18mm

Contact Termination :

Crimp and Solder

Min Operating Temperature :

-55°C

Contact Material :

NOT SPECIFIED

Series :

Metrimate

Approval Agency :

UL

Max Voltage Rating (AC) :

600V

MIL Conformance :

No

Number of Rows :

1

Flammability Rating :

UL94 V-0

Pitch :

0.200 5.08mm
