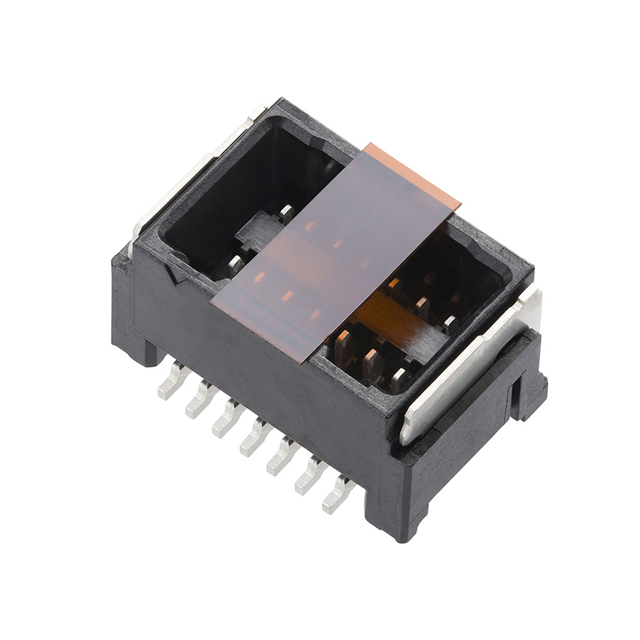

2077601481

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mounting Type :

Surface Mount

Contact Type :

-

Mounting Angle :

Straight

Number of Positions :

14 Position

Pitch :

1.25 mm

Current Rating :

2 A

Contact Shape :

RECTANGULAR

Contact Resistance Max :

20(mohm)

Pitch (mm) :

1.25(mm)

Contact Length - Post :

-

Current Rating (Max) :

2/Contact(A)

Overall Contact Length :

-

Termination Method :

Solder

Orientation :

Vertical

Product Height (mm) :

7.4(mm)

Operating Temp Range :

-40C to 105C

Ingress Protection :

-

Termination Style :

Solder

Housing Gender :

-

Contact Length - Mating :

-

Voltage Rating :

50 VAC/DC

RoHS :

Details

Fastening Type :

Latch Holder

Minimum Operating Temperature :

- 40 C

Insulation Height :

0.285 (7.25mm)

Shrouding :

Shrouded - 4 Wall

Contact Finish - Post :

Tin-Bismuth

Number of Contact Rows :

2

Contact Material :

Brass

Product Length (mm) :

13.65(mm)

Body Orientation :

Straight

Insulation Color :

Black

Number of Contacts :

14(POS)

Contact Plating :

Tin

Type :

SHROUDED

Pitch - Mating :

0.049 (1.25mm)

Product Status :

Active

Series :

207760

Features :

Pick and Place, Solder Retention

Maximum Operating Temperature :

+ 105 C

Mounting Style :

SMD/SMT

Gender :

HDR

Termination :

Solder

Base Product Number :

207760

Current Rating (Amps) :

Varies by Wire Gauge

Number of Positions Loaded :

All

Contact Finish - Mating :

Tin-Bismuth

Flammability Rating :

UL 94 V-1

Row Spacing - Mating :

-

Number of Rows :

2 Row

Mated Stacking Heights :

-

Insulation Material :

Polyamide (PA), Nylon

Stackable :

No

IP Rating :

-

Voltage Rating Max :

50VDC/50VAC

Connector Type :

Header

Packaging :

Cut Tape

Tradename :

Micro-Lock Plus

Product :

Headers

Material Flammability Rating :

UL94 V-0

Applications :

-

Operating Temperature :

-40°C ~ 105°C

Product Depth (mm) :

9.7(mm)

Housing Color :

Black

Contact Finish Thickness - Post :

-

Style :

Board to Cable/Wire

Contact Finish Thickness - Mating :

-

Housing Material :

Polyamide (PA)

Contact Gender :

Pin (Male)

Application :

Signal, Wire-to-Board

Package :

Tape and Reel (TR);Cut Tape (CT);

Shrouded :

Fully
