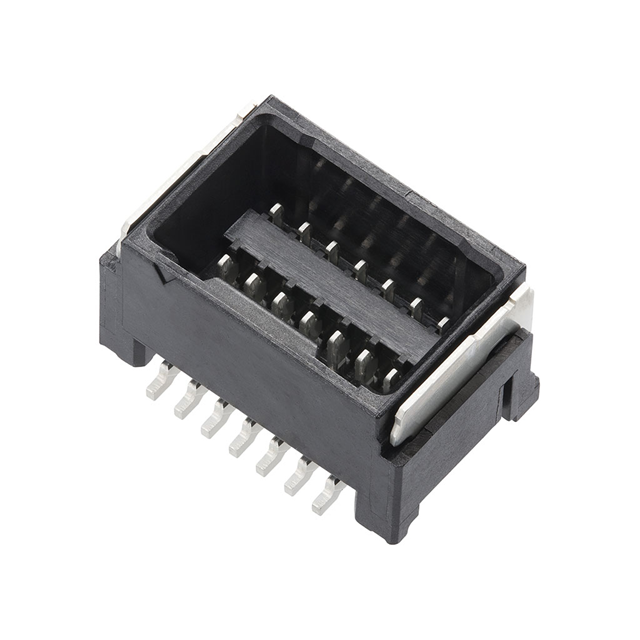

2077601471

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Tin-Bismuth

IP Rating :

-

Overall Contact Length :

-

Insulation Color :

Black

Ingress Protection :

-

Style :

Board to Cable/Wire

Current Rating :

2 A

Mounting Type :

Surface Mount

Termination :

Solder

Housing Material :

Polyamide (PA)

Fastening Type :

Latch Holder

Voltage Rating :

50 VAC/DC

Termination Style :

Solder

Type :

SHROUDED

Insulation Height :

0.285 (7.25mm)

Contact Gender :

Pin (Male)

Current Rating (Amps) :

Varies by Wire Gauge

Flammability Rating :

UL 94 V-1

Contact Length - Mating :

-

Features :

Solder Retention

Housing Gender :

-

Number of Positions :

14 Position

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Contact Type :

-

Orientation :

Vertical

Maximum Operating Temperature :

+ 105 C

RoHS :

Details

Row Spacing - Mating :

-

Contact Shape :

RECTANGULAR

Base Product Number :

207760

Pitch :

1.25 mm

Mated Stacking Heights :

-

Contact Material :

Brass

Operating Temperature :

-40°C ~ 105°C

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

Mounting Style :

SMD/SMT

Connector Type :

Header

Shrouding :

Shrouded - 4 Wall

Tradename :

Micro-Lock Plus

Packaging :

Cut Tape

Contact Plating :

Tin

Number of Positions Loaded :

All

Pitch - Mating :

0.049 (1.25mm)

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Applications :

-

Shrouded :

Fully

Product Status :

Active

Application :

Signal, Wire-to-Board

Insulation Material :

Polyamide (PA), Nylon

Material Flammability Rating :

UL94 V-0

Minimum Operating Temperature :

- 40 C

Housing Color :

Black

Product :

Headers

Contact Length - Post :

-

Mounting Angle :

Straight

Contact Finish - Post :

Tin-Bismuth

Number of Rows :

2 Row

Stackable :

No

Series :

207760
