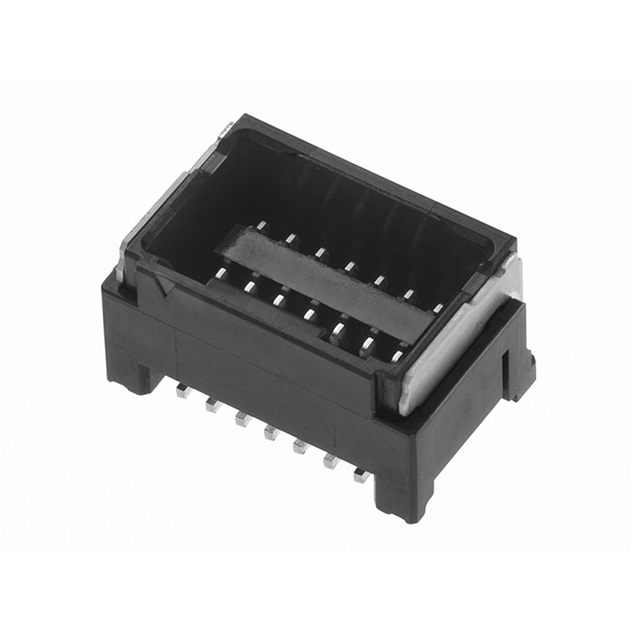

2077601271

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

Overall Contact Length :

-

Material Flammability Rating :

UL94 V-0

RoHS :

Details

Number of Positions Loaded :

All

Connector Type :

Header

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Housing Gender :

-

Contact Finish - Post :

Tin-Bismuth

Contact Finish - Mating :

Tin-Bismuth

Features :

Solder Retention

Product Status :

Active

Current Rating (Amps) :

Varies by Wire Gauge

Application :

Signal, Wire-to-Board

Series :

207760

Orientation :

Vertical

Contact Gender :

Pin (Male)

Insulation Material :

Polyamide (PA), Nylon

Voltage Rating :

50 VAC/DC

Type :

SHROUDED

Pitch - Mating :

0.049 (1.25mm)

Applications :

-

Housing Color :

Black

Base Product Number :

207760

Style :

Board to Cable/Wire

Minimum Operating Temperature :

- 40 C

Packaging :

Cut Tape

Termination Style :

Solder

Housing Material :

Polyamide (PA)

Stackable :

No

Row Spacing - Mating :

-

Contact Shape :

RECTANGULAR

Insulation Color :

Black

Ingress Protection :

-

Contact Plating :

Tin

Contact Length - Post :

-

Mounting Style :

SMD/SMT

Maximum Operating Temperature :

+ 105 C

Contact Material :

Brass

Mounting Angle :

Straight

Shrouded :

Fully

Mounting Type :

Surface Mount

Tradename :

Micro-Lock Plus

Number of Positions :

12 Position

Insulation Height :

0.285 (7.25mm)

Fastening Type :

Latch Holder

Contact Length - Mating :

-

Number of Rows :

2 Row

Product :

Headers

IP Rating :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Mated Stacking Heights :

-

Current Rating :

2 A

Flammability Rating :

UL 94 V-1

Operating Temperature :

-40°C ~ 105°C

Contact Type :

-

Pitch :

1.25 mm

Shrouding :

Shrouded - 4 Wall

Termination :

Solder
