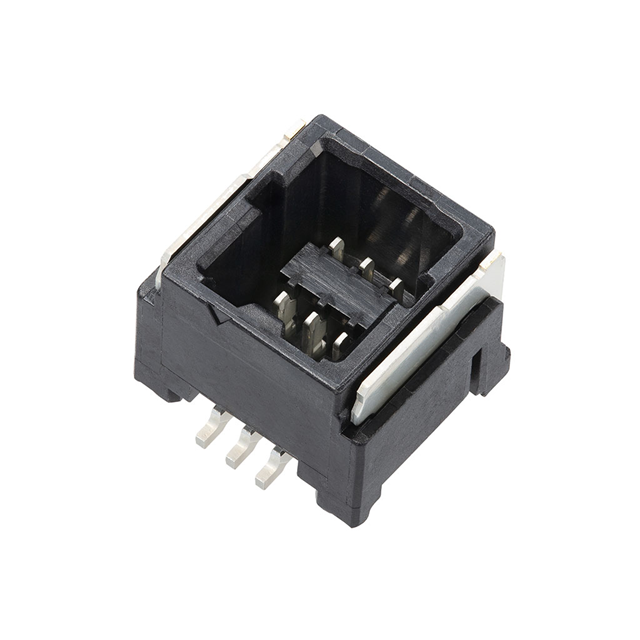

2077600671

Manufacturer :

Molex

Product Category :

Headers, Male Pins

RoHS :

Details

Mounting Type :

Surface Mount

Features :

Solder Retention

Tradename :

Micro-Lock Plus

Number of Positions Loaded :

All

Product Status :

Active

Termination Style :

Solder

Type :

SHROUDED

Contact Plating :

Tin

Contact Shape :

RECTANGULAR

Number of Positions :

6 Position

Overall Contact Length :

-

Insulation Material :

Polyamide (PA), Nylon

Series :

207760

Housing Color :

Black

Pitch - Mating :

0.049 (1.25mm)

Connector Type :

Header

Contact Gender :

Pin (Male)

Product :

Headers

Operating Temperature :

-40°C ~ 105°C

Shrouding :

Shrouded - 4 Wall

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

IP Rating :

-

Contact Length - Post :

-

Flammability Rating :

UL 94 V-1

Voltage Rating :

50 VAC/DC

Contact Material :

Brass

Housing Material :

Polyamide (PA)

Current Rating (Amps) :

Varies by Wire Gauge

Shrouded :

Fully

Fastening Type :

Latch Holder

Contact Length - Mating :

-

Ingress Protection :

-

Row Spacing - Mating :

-

Stackable :

No

Minimum Operating Temperature :

- 40 C

Base Product Number :

207760

Maximum Operating Temperature :

+ 105 C

Mounting Angle :

Straight

Packaging :

Cut Tape

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Style :

Board to Cable/Wire

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Insulation Color :

Black

Contact Finish - Post :

Tin-Bismuth

Orientation :

Vertical

Pitch :

1.25 mm

Mounting Style :

SMD/SMT

Number of Rows :

2 Row

Contact Finish - Mating :

Tin-Bismuth

Mated Stacking Heights :

-

Current Rating :

2 A

Material Flammability Rating :

UL94 V-0

Housing Gender :

-

Applications :

-

Termination :

Solder

Application :

Signal, Wire-to-Board

Insulation Height :

0.285 (7.25mm)

Contact Type :

-
