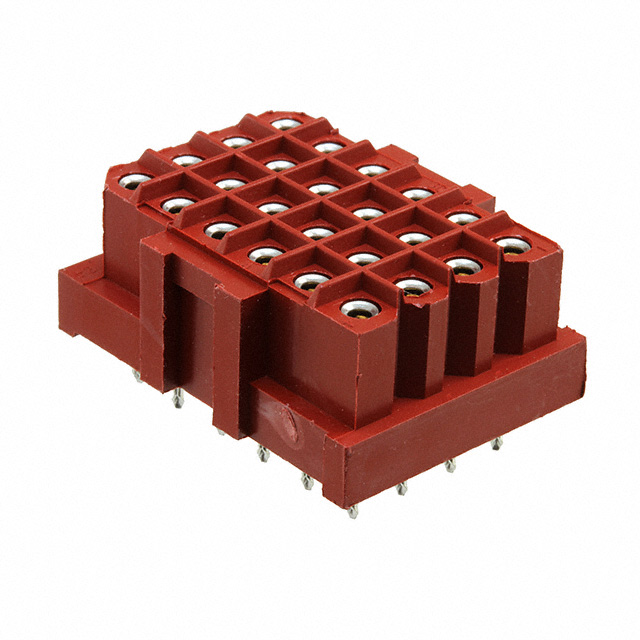

207532-4
- Mfr.Part #
- 207532-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 24POS 0.197 GOLD PCB
- Stock
- 99
- In Stock :
- 99
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Current Rating :
- 14A
- Pitch :
- 5mm
- Length :
- 47.32mm
- Number of Contacts :
- 24
- Withdrawl Force-Min :
- .278 N
- Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Empty Shell :
- No
- Contact Style :
- RND PIN-SKT
- Lead Pitch :
- 5mm
- DIN Conformance :
- No
- ECCN Code :
- EAR99
- Depth :
- 25.55mm
- Number of Rows :
- 4
- Contact Gender :
- FEMALE
- Mixed Contacts :
- No
- Connector Type :
- Header, Plug, Socket
- PCB Mounting Orientation :
- Vertical
- Mating Information :
- 207305-1
- Width :
- 25.55mm
- Lead Free :
- Contains Lead
- Polarization Key :
- POLARIZED HOUSING
- Additional Feature :
- SOCKET HEADER
- Reliability :
- COMMERCIAL
- ELV :
- Non-Compliant
- Number Of PCB Rows :
- 6
- Termination :
- Solder
- VDE Tested :
- yes
- JESD-609 Code :
- e0
- RoHS Status :
- Non-RoHS Compliant
- Approval Agency :
- UL
- Option :
- GENERAL PURPOSE
- Packaging :
- Bulk
- Mount :
- Through Hole
- Body Breadth :
- 1.863 inch
- Length - Tail :
- 4.5974mm
- Dielectric Withstanding Voltage :
- 2000VAC V
- Insulation Resistance :
- 100000000Ohm
- Min Operating Temperature :
- -55°C
- Contact Rating (Current) :
- 7.5A
- Height :
- 14.35mm
- Plating Thickness :
- 3.81μm
- Number of Conductors :
- ONE
- Max Voltage Rating (AC) :
- 600V
- Durability :
- 250 Cycles
- Housing Material :
- Nylon
- Shell Material :
- POLYETHYLENE
- Row Spacing - Mating :
- 5.0038 mm
- Voltage - Rated :
- 600V
- IEC Conformance :
- No
- Filter Feature :
- No
- Pbfree Code :
- No
- Radiation Hardening :
- No
- Color :
- Red
- PCB Thickness :
- 1.6002mm
- Contact Material :
- Bronze
- Contact Plating :
- Gold
- Max Operating Temperature :
- 130°C
- Datasheets
- 207532-4

4 Rows Header, Plug, Socket Solder Bronze Bulk
207532-4 Overview
The product comes in a package of Header, Plug, Socket.To package the product, a Bulk case is used.Among other features are SOCKET HEADER, to name only a few.Use it when the temperature is below 130°C.Temperatures below -55°C are required for this device to operate.It is mounted by Through Hole.
207532-4 Features
207532-4 Applications
There are a lot of TE Connectivity / AMP
207532-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
