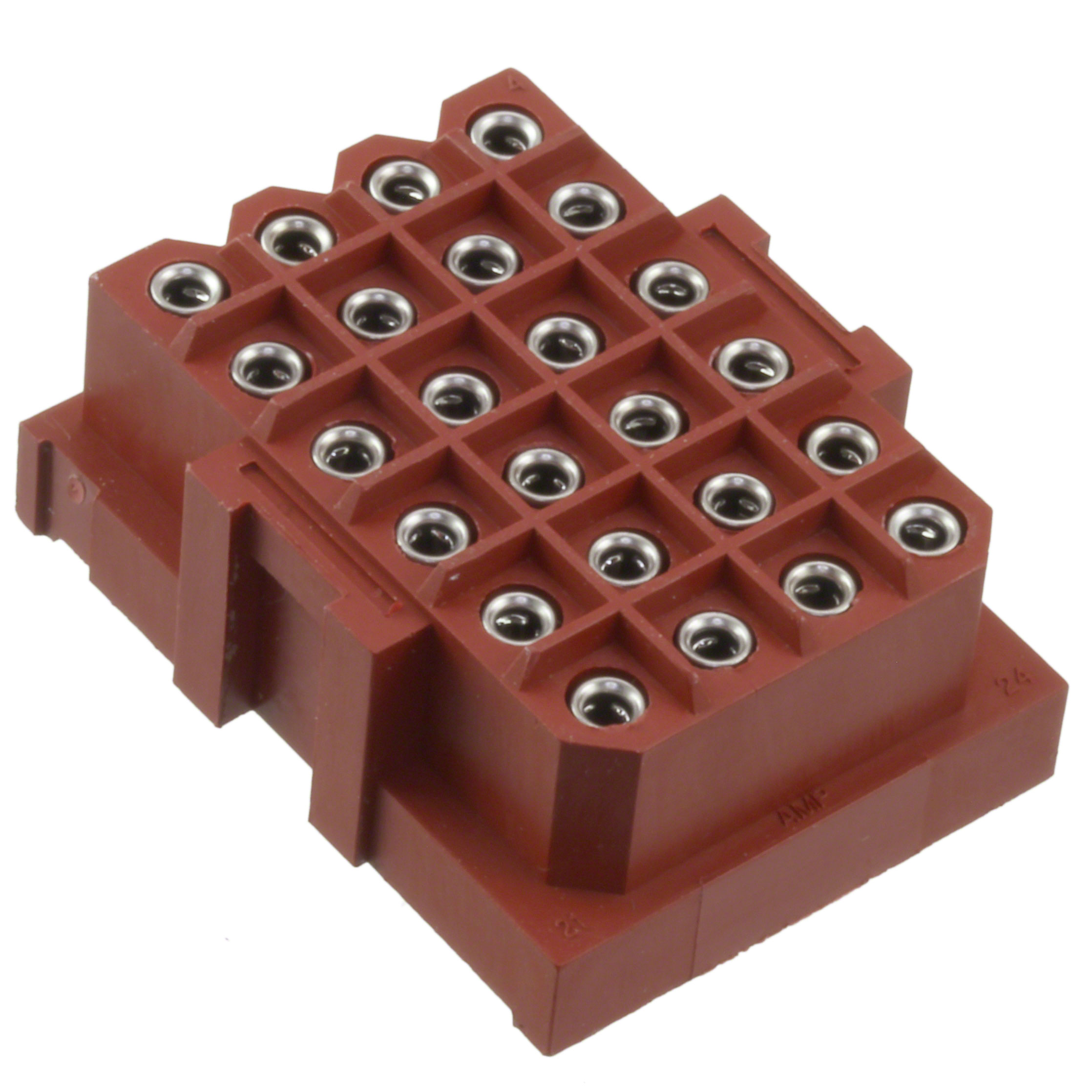

207532-2
Or copy the link below:
- Mfr.Part #
- 207532-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 24P 0.197 TIN-LEAD PCB
- Stock
- 21
- In Stock ：
- 21
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Number of Conductors :
- ONE
- Contact Current Rating :
- 7.5A
- Flammability Rating :
- UL94 V-0
- ELV :
- Non-Compliant
- Body Breadth :
- 1.863 inch
- Filter Feature :
- No
- Number of Rows :
- 4
- Mating Information :
- 207305-1
- Reliability :
- COMMERCIAL
- Number of Positions Loaded :
- All
- Fastening Type :
- Latch Holder
- Contact Type :
- Female Socket
- PCB Contact Row Spacing :
- 5.0038 mm
- Lead Pitch :
- 5mm
- Number of Positions :
- 24
- Series :
- Metrimate
- VDE Tested :
- yes
- Material Flammability Rating :
- UL94 V-0
- Radiation Hardening :
- No
- MIL Conformance :
- No
- Number Of PCB Rows :
- 6
- Color :
- Red
- Gender :
- FEMALE
- Plating Thickness :
- 3.81μm
- Empty Shell :
- No
- Insulation Material :
- Polyamide (PA), Nylon
- IEC Conformance :
- No
- Length :
- 47.32mm
- Style :
- Board to Cable/Wire
- Pbfree Code :
- No
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- Durability :
- 250 Cycles
- Depth :
- 25.55mm
- PCB Thickness :
- 1.6002mm
- Pitch - Mating :
- 0.197 5.00mm
- Contact Shape :
- Circular
- Packaging :
- Tray
- Insulation Height :
- 0.565 14.35mm
- Insulation Color :
- Black, Red
- Termination :
- Solder
- Operating Temperature :
- -55°C~130°C
- ECCN Code :
- EAR99
- Mount :
- Through Hole
- Contact Length - Post :
- 0.181 4.60mm
- Approval Agency :
- UL
- RoHS Status :
- Non-RoHS Compliant
- Width :
- 25.55mm
- Shell Material :
- POLYETHYLENE
- Lead Free :
- Contains Lead
- Current Rating :
- 14A
- Housing Material :
- Nylon
- Row Spacing - Mating :
- 0.197 (5.00mm)
- Published :
- 2005
- Polarization Key :
- POLARIZED HOUSING
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- Vertical
- Mating Contact Pitch :
- 0.197 inch
- Mounting Type :
- Through Hole
- Contact Plating :
- Tin
- Max Voltage Rating (AC) :
- 600V
- Voltage - Rated :
- 600V
- DIN Conformance :
- No
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Contact Material :
- Phosphor Bronze
- Withdrawl Force-Min :
- .278 N
- Length - Tail :
- 4.5974mm
- Terminal Pitch :
- 5.0038mm
- Height :
- 14.35mm
- Factory Lead Time :
- 20 Weeks
- Mixed Contacts :
- No
- Dielectric Withstanding Voltage :
- 2000VAC V
- Insulation Resistance :
- 100000000Ohm
- Connector Type :
- Header
- Contact Finish - Mating :
- Tin-Lead
- JESD-609 Code :
- e0
- Datasheets
- 207532-2
207532-2 Documents
4 Rows Header Solder Phosphor Bronze Through Hole Tray Tin-Lead Polyamide (PA), Nylon 24 Positions Female Socket
207532-2 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Metrimate Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -55°C~130°C Operating Temperature.
207532-2 Features
Metrimate series
207532-2 Applications
There are a lot of TE Connectivity AMP Connectors
207532-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
