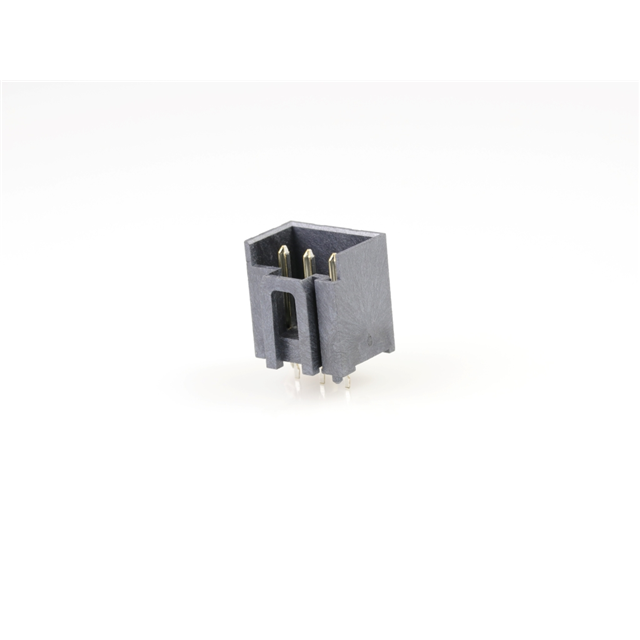

2074790003
Or copy the link below:
- Mfr.Part #
- 2074790003
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 3.96MM
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Applications :
- Automotive, General Purpose, Industrial, Medical, Telecommunications
- Fastening Type :
- Latch Holder
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Material :
- Brass Alloy
- Operating Temperature :
- -40°C~105°C
- Mounting Type :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 14 Weeks
- Overall Contact Length :
- 0.693 17.60mm
- Feature :
- Board Guide, Glow Wire Compliant
- Shrouding :
- Shrouded - 4 Wall
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Number of Rows :
- 1
- Contact Shape :
- Square
- Series :
- L1NK 396 207479
- Insulation Color :
- Black
- Voltage - Rated :
- 350V
- Packaging :
- Tray
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Mating :
- Tin
- Pitch - Mating :
- 0.156 3.96mm
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 3
- Connector Type :
- Header
- Contact Length - Post :
- 0.138 3.50mm
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Datasheets
- 2074790003
L1NK 396 207479 Series 1-Row Header Solder Brass Alloy Tray Through Hole Tin Liquid Crystal Polymer (LCP) 3-Position Board to Cable/Wire
2074790003 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number L1NK 396 207479 belongs to the L1NK 396 207479 Series.In addition to Automotive, General Purpose, Industrial, Medical, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Guide, Glow Wire Compliant feature.This device operates at a temperature of -40°C~105°C.
2074790003 Features
L1NK 396 207479 series
2074790003 Applications
There are a lot of Molex
2074790003 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
