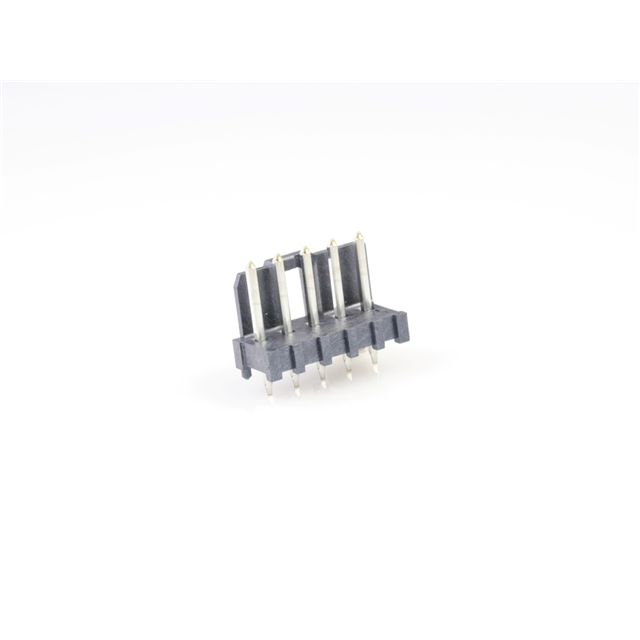

2074781005
Or copy the link below:
- Mfr.Part #
- 2074781005
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 3.96MM
- Stock
- 8,160
- In Stock ：
- 8,160
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Packaging :
- Tray
- Shrouding :
- Shrouded - 1 Wall
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 5
- Series :
- L1NK 396 207478
- Voltage - Rated :
- 350V
- Operating Temperature :
- -40°C~105°C
- Mounting Type :
- Through Hole
- Contact Type :
- Male Pin
- Feature :
- Board Guide, Glow Wire Compliant
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Insulation Height :
- 0.476 12.10mm
- Pitch - Mating :
- 0.156 3.96mm
- Number of Positions Loaded :
- All
- Fastening Type :
- Latch Holder
- Current Rating (Amps) :
- Varies by WireGAuge
- Insulation Color :
- Black
- Number of Rows :
- 1
- Factory Lead Time :
- 14 Weeks
- Overall Contact Length :
- 0.693 17.60mm
- Connector Type :
- Header
- Contact Length - Post :
- 0.138 3.50mm
- RoHS Status :
- ROHS3 Compliant
- Applications :
- Automotive, General Purpose, Industrial, Medical, Telecommunications
- Contact Material :
- Brass Alloy
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Contact Finish - Mating :
- Tin
- Style :
- Board to Cable/Wire
- Datasheets
- 2074781005
2074781005 Documents
L1NK 396 207478 Series 1-Row Header Solder Brass Alloy Tray Through Hole Tin Liquid Crystal Polymer (LCP) 5-Position Board to Cable/Wire 0.476 12.10mm Height
2074781005 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the L1NK 396 207478 Series.There are a variety of possible applications for this device, including Automotive, General Purpose, Industrial, Medical, Telecommunications.Several benefits come from the Board Guide, Glow Wire Compliant feature.Devices operate at -40°C~105°C operating temperatures.
2074781005 Features
L1NK 396 207478 series
2074781005 Applications
There are a lot of Molex
2074781005 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
