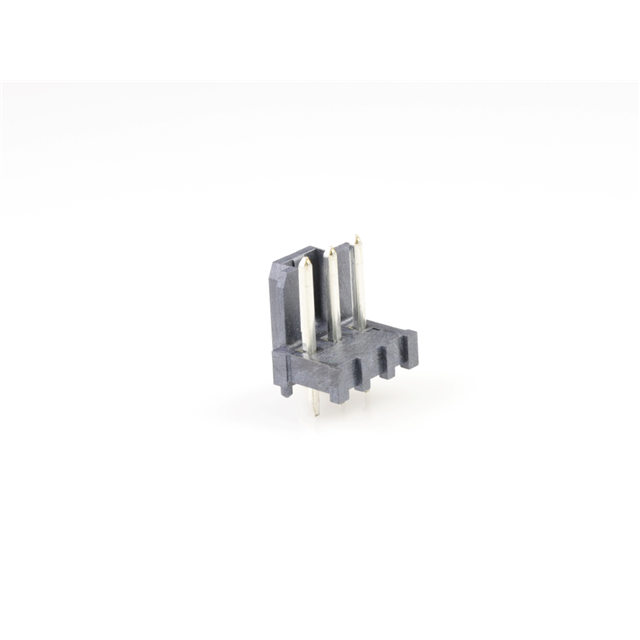

2074781003
Or copy the link below:
- Mfr.Part #
- 2074781003
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 3.96MM
- Stock
- 8,704
- In Stock ：
- 8,704
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Mounting Type :
- Through Hole
- Shrouding :
- Shrouded - 1 Wall
- Applications :
- Automotive, General Purpose, Industrial, Medical, Telecommunications
- Number of Positions Loaded :
- All
- Overall Contact Length :
- 0.693 17.60mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- L1NK 396 207478
- Feature :
- Board Guide, Glow Wire Compliant
- Connector Type :
- Header
- Factory Lead Time :
- 14 Weeks
- Contact Material :
- Brass Alloy
- Fastening Type :
- Latch Holder
- Number of Rows :
- 1
- Insulation Color :
- Black
- Style :
- Board to Cable/Wire
- Current Rating (Amps) :
- Varies by WireGAuge
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Contact Type :
- Male Pin
- Number of Positions :
- 3
- Termination :
- Solder
- Voltage - Rated :
- 350V
- Packaging :
- Tray
- RoHS Status :
- ROHS3 Compliant
- Contact Shape :
- Square
- Pitch - Mating :
- 0.156 3.96mm
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Tin
- Insulation Height :
- 0.476 12.10mm
- Contact Length - Post :
- 0.138 3.50mm
- Operating Temperature :
- -40°C~105°C
- Datasheets
- 2074781003
L1NK 396 207478 Series 1-Row Header Solder Brass Alloy Tray Through Hole Tin Liquid Crystal Polymer (LCP) 3-Position Board to Cable/Wire 0.476 12.10mm Height
2074781003 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Tray case is necessary to package the product.There is a product in the L1NK 396 207478 Series.The device could be used for the following application: Automotive, General Purpose, Industrial, Medical, Telecommunications.There are a number of advantages to its Board Guide, Glow Wire Compliant feature.As a result, the device runs at -40°C~105°C Operating Temperature.
2074781003 Features
L1NK 396 207478 series
2074781003 Applications
There are a lot of Molex
2074781003 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
