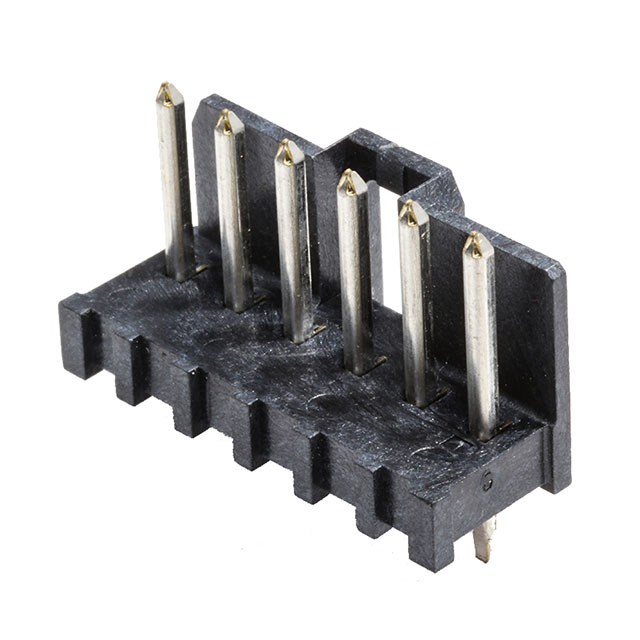

2074780006
Or copy the link below:
- Mfr.Part #
- 2074780006
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 3.96MM
- Stock
- 4,199
- In Stock ：
- 4,199
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Packaging :
- Tray
- Applications :
- Automotive, General Purpose, Industrial, Medical, Telecommunications
- Contact Material :
- Brass Alloy
- Contact Finish - Mating :
- Tin
- Pitch - Mating :
- 0.156 3.96mm
- Current Rating (Amps) :
- Varies by WireGAuge
- Contact Length - Post :
- 0.138 3.50mm
- Shrouding :
- Shrouded - 1 Wall
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Black
- Fastening Type :
- Latch Holder
- Operating Temperature :
- -40°C~105°C
- Termination :
- Solder
- Feature :
- Glow Wire Compliant
- Factory Lead Time :
- 14 Weeks
- Mounting Type :
- Through Hole
- Contact Type :
- Male Pin
- Style :
- Board to Cable/Wire
- Number of Positions :
- 6
- Connector Type :
- Header
- Number of Rows :
- 1
- Voltage - Rated :
- 350V
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- ROHS3 Compliant
- Series :
- L1NK 396 207478
- Overall Contact Length :
- 0.693 17.60mm
- Insulation Height :
- 0.476 12.10mm
- Contact Shape :
- Square
- Datasheets
- 2074780006
2074780006 Documents
L1NK 396 207478 Series 1-Row Header Solder Brass Alloy Tray Through Hole Tin Liquid Crystal Polymer (LCP) 6-Position Board to Cable/Wire 0.476 12.10mm Height
2074780006 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the L1NK 396 207478 Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive, General Purpose, Industrial, Medical, Telecommunications.A number of features make the Glow Wire Compliant feature more powerful.-40°C~105°C Operating Temperature is the default operating temperature for the device.
2074780006 Features
L1NK 396 207478 series
2074780006 Applications
There are a lot of Molex
2074780006 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
