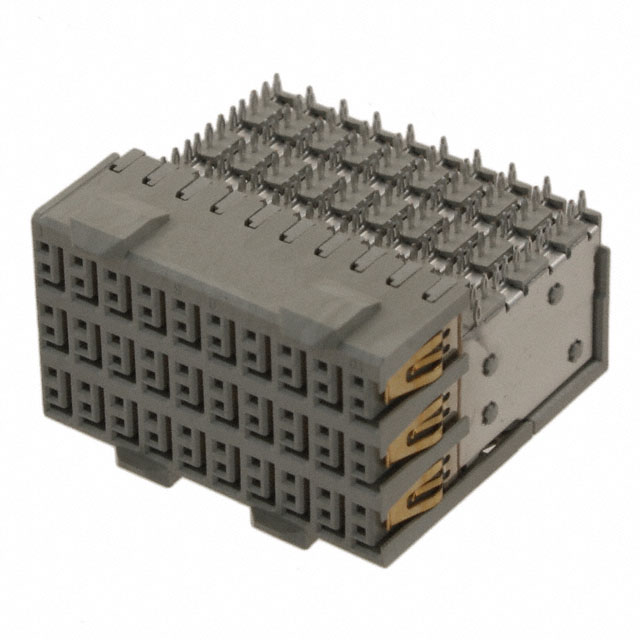

2065883-1
Or copy the link below:
- Mfr.Part #
- 2065883-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HIGH SPEED 90P EDGE MT
- Stock
- 763
- In Stock ：
- 763
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Specialized
- Circuit Application :
- Signal
- Number of Rows :
- 6
- Row Spacing :
- 1.5 mm
- Mount :
- Edge, Through Hole
- Number of Positions :
- 90
- Connector Style :
- High Speed
- PCB Mounting Orientation :
- RIGHT ANGLE
- Plating Thickness :
- 760 nm
- Series :
- Z-Pack HM-ZD
- Material Flammability Rating :
- UL94 V-0
- Contact Plating :
- Gold
- Operating Temperature :
- -65°C~105°C
- ELV :
- Compliant
- Operating Supply Voltage :
- 250V
- Connector Type :
- Receptacle, Female Sockets
- Published :
- 2011
- Gender :
- Receptacle
- Plating :
- Gold
- Number of Columns :
- 10
- Max Operating Temperature :
- 105°C
- Factory Lead Time :
- 13 Weeks
- Shielding :
- Unshielded
- Connector Usage :
- Daughtercard
- Current Rating (Amps) :
- 0.600A
- Voltage - Rated AC :
- 250V
- Voltage - Rated :
- 250V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- RoHS Status :
- RoHS Compliant
- Number of Contacts :
- 60
- Packaging :
- Tube
- Current Rating :
- 600mA
- Contact Material :
- Copper, Nickel
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Sealable :
- No
- REACH SVHC :
- Unknown
- Number of Pairs :
- 20
- Housing Color :
- Grey
- Termination :
- Press-Fit
- Lead Free :
- Lead Free
- Length :
- 24.9mm
- Pitch :
- 0.098 2.50mm
- Number of Positions Loaded :
- All
- Make First / Break Last :
- No
- Orientation :
- RIGHT ANGLE
- Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -65°C
- Max Current Rating :
- 6A
- Housing Material :
- Polyester
- Contact Layout, Typical :
- 60 Signal, 30 Ground
- Feature :
- Shielded
- Depth :
- 24.4mm
- Datasheets
- 2065883-1
Z-PACK HM-Zd Series Receptacle, Female Sockets Press-Fit 90 Positions Pitch: 0.098 2.50mm -65°C~105°C Tube Board Edge, Through Hole, Right Angle
2065883-1 Overview
The product comes in a package of Receptacle, Female Sockets.Board Edge, Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Z-PACK HM-Zd Series.Use it when the temperature is below 105°C.Temperatures below -65°C are required for this device to operate.It is more powerful in many ways due to its Shielded feature.It is mounted by Edge, Through Hole.It operates at an operating temperature of -65°C~105°C.As long as the supply voltage is 250V, this Backplane Connector is functional.
2065883-1 Features
Z-PACK HM-Zd series
2065883-1 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
2065883-1 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
