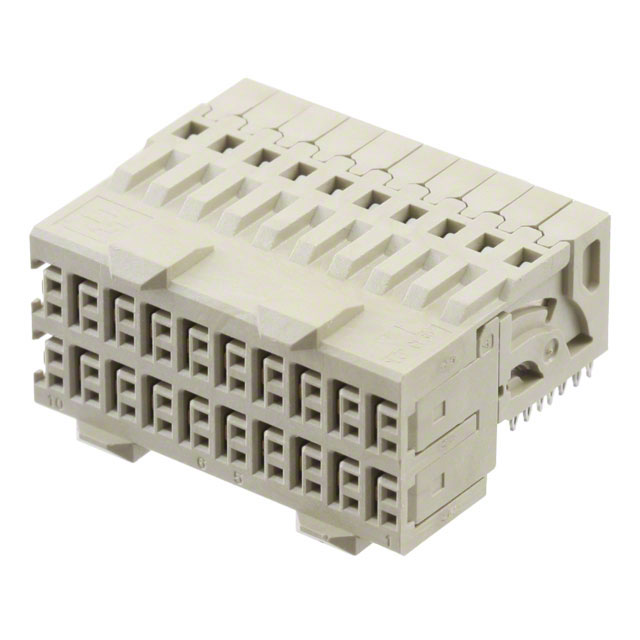

2065769-1
Or copy the link below:
- Mfr.Part #
- 2065769-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HIGH SPEED 60P EDGE MT
- Stock
- 3,032
- In Stock ：
- 3,032
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Specialized
- Contact Plating :
- Lead, Tin
- ELV :
- Compliant
- Factory Lead Time :
- 5 Weeks
- Row Spacing :
- 1.5 mm
- Operating Supply Voltage :
- 250V
- Depth :
- 19.9mm
- Connector Usage :
- Daughtercard
- Plating Thickness :
- 760 nm
- Reliability :
- COMMERCIAL
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Shielding :
- Unshielded
- Contact Pattern :
- RECTANGULAR
- Circuit Application :
- Signal
- Pitch :
- 0.098 2.50mm
- Dielectric Withstanding Voltage :
- 650VAC V
- Length :
- 24.9mm
- Reference Standard :
- UL
- PCB Contact Pattern :
- MIXED
- Connector Style :
- High Speed
- Number Of PCB Rows :
- 8
- Current Rating (Amps) :
- 0.600A
- Connector Type :
- Receptacle, Female Sockets
- Flammability Rating :
- UL94 V-0
- Orientation :
- RIGHT ANGLE
- Make First / Break Last :
- No
- Series :
- Z-Pack HM-ZD
- Housing Material :
- Polyester
- Gender :
- Receptacle
- Number of Pairs :
- 20
- RoHS Status :
- RoHS Compliant
- ECCN Code :
- EAR99
- Packaging :
- Tube
- Contact Material :
- Copper, Nickel
- Mount :
- Edge, Through Hole
- Number of Positions :
- 60
- Feature :
- Shielded
- Lead Free :
- Lead Free
- Current Rating :
- 600mA
- Max Current Rating :
- 700mA
- Number of Positions Loaded :
- All
- Contact Resistance :
- 1MOhm
- Operating Temperature :
- -65°C~105°C
- PCB Mounting Orientation :
- RIGHT ANGLE
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Termination :
- Press-Fit
- Material Flammability Rating :
- UL94 V-0
- Housing Color :
- Grey
- Number of Contacts :
- 40
- Number of Rows :
- 4
- Published :
- 2011
- Contact Layout, Typical :
- 40 Signal, 20 Ground
- Contact Style :
- SQ PIN-SKT
- REACH SVHC :
- Unknown
- Number of Conductors :
- ONE
- Number of Columns :
- 10
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 2065769-1
Z-PACK HM-Zd Series Receptacle, Female Sockets Press-Fit 60 Positions Pitch: 0.098 2.50mm -65°C~105°C Tube Board Edge, Through Hole, Right Angle
2065769-1 Overview
This product is packaged in a Receptacle, Female Sockets box.Board Edge, Through Hole, Right Angle indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Z-PACK HM-Zd Series.In many ways, Shielded makes it more powerful.By Edge, Through Hole, the part is mounted.Operating temperature is set to -65°C~105°C.The Backplane Connector is capable of working with a supply voltage of 250V.
2065769-1 Features
Z-PACK HM-Zd series
2065769-1 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
2065769-1 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
