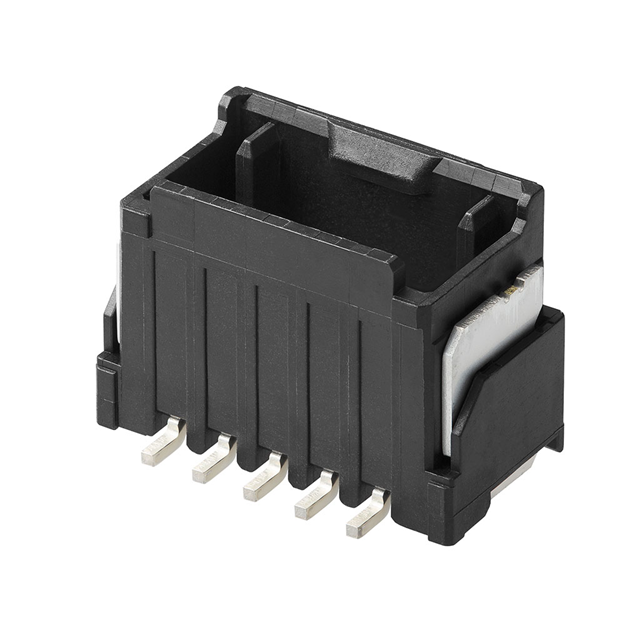

2059710031

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mounting Style :

SMD/SMT

Applications :

General Purpose, Industrial

Contact Gender :

Pin (Male)

Number of Rows :

1 Row

Operating Temperature :

-40°C ~ 105°C

Shrouding :

Shrouded - 4 Wall

Fastening Type :

Latch Lock

Minimum Operating Temperature :

- 40 C

Contact Material :

Brass

Connector Type :

Header

Style :

Board to Cable/Wire

Insulation Height :

0.390 (9.90mm)

Pitch :

2 mm

Application :

Power, Wire-to-Board

Ingress Protection :

-

Insulation Color :

Black

Contact Length - Post :

-

Termination Style :

Solder

Contact Length - Mating :

-

Contact Type :

Male Pin

Base Product Number :

205971

Current Rating (Amps) :

Varies by Wire Gauge

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Housing Color :

Black

Mounting Angle :

Straight

Features :

Solder Retention

Insulation Material :

Polyamide (PA), Nylon

Tradename :

Micro-One

Orientation :

Vertical

Contact Finish - Mating :

Tin-Bismuth

Product Status :

Active

Type :

SHROUDED

Contact Finish - Post :

Tin-Bismuth

Contact Plating :

Tin

Row Spacing - Mating :

-

Mated Stacking Heights :

-

Pitch - Mating :

0.079 (2.00mm)

Maximum Operating Temperature :

+ 105 C

Series :

205971

Material Flammability Rating :

UL94 V-0

Packaging :

Cut Tape

Current Rating :

4 A

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Voltage Rating :

250 VAC/DC

Shrouded :

Fully

RoHS :

Details

Product :

Headers

Number of Positions :

3 Position

Overall Contact Length :

-

Housing Material :

Polyamide (PA)

Contact Shape :

Square

Mounting Type :

Surface Mount

Number of Positions Loaded :

All

Termination :

Solder
