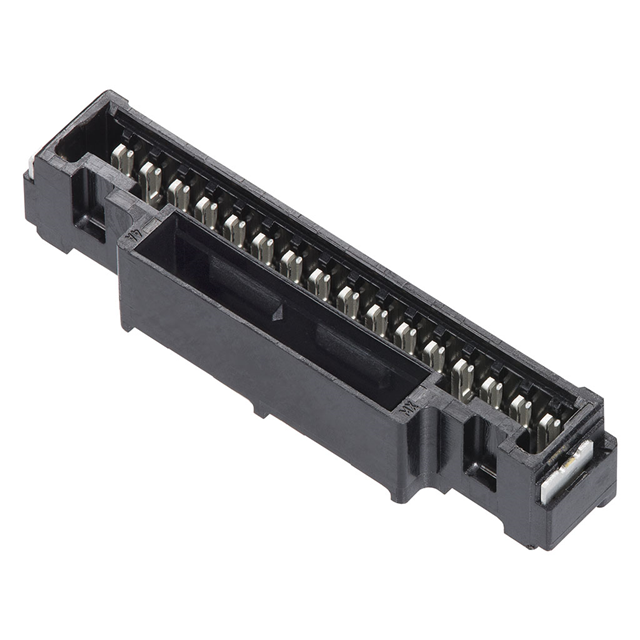

2059570971
Or copy the link below:
- Mfr.Part #
- 2059570971
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 1.25WB MLP PTG SR ST ASSY 9CKT E
- Stock
- 898
- In Stock ：
- 898
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 1
- Connector Type :
- Header
- Contact Type :
- Male Pin
- Mounting Type :
- Surface Mount
- Insulation Material :
- Polyamide (PA), Nylon, Glass Filled
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Mating :
- Tin-Bismuth
- Factory Lead Time :
- 16 Weeks
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Post :
- 39.4μin 1.00μm
- Fastening Type :
- Latch Holder
- Operating Temperature :
- -40°C~105°C
- Current Rating (Amps) :
- Varies by WireGAuge
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Voltage - Rated :
- 50V
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Board Lock, Solder Retention
- Pitch - Mating :
- 0.049 1.25mm
- Contact Shape :
- Square
- Insulation Height :
- 0.206 5.23mm
- Packaging :
- Tape and Reel (TR)
- Series :
- Micro-Lock PLUS 205957
- Insulation Color :
- Black
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Mating :
- 39.4μin 1.00μm
- Contact Material :
- Brass
- Number of Positions :
- 9
- Datasheets
- 2059570971
2059570971 Documents
Micro-Lock PLUS 205957 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Tin-Bismuth Polyamide (PA), Nylon, Glass Filled 9-Position Board to Cable/Wire 0.206 5.23mm Height
2059570971 Overview
The packaging contains Header.There is a Surface Mount mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number Micro-Lock PLUS 205957 belongs to the Micro-Lock PLUS 205957 Series.In many ways, it is more powerful due to its Board Lock, Solder Retention feature.This device operates at a temperature of -40°C~105°C.
2059570971 Features
Micro-Lock PLUS 205957 series
2059570971 Applications
There are a lot of Molex
2059570971 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
