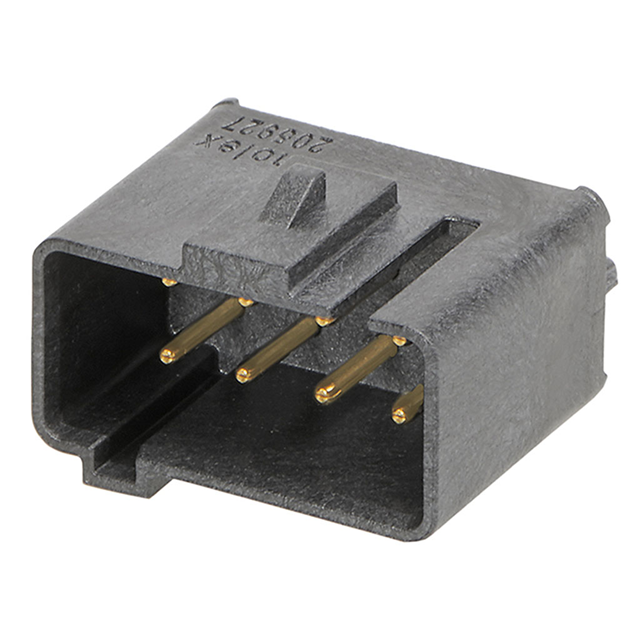

2059271110
Or copy the link below:
- Mfr.Part #
- 2059271110
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 3.18MM
- Stock
- 393
- In Stock ：
- 393
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Height :
- 0.591 15.00mm
- Row Spacing - Mating :
- 0.142 (3.60mm)
- Number of Positions :
- 8
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Mating :
- Gold
- Contact Shape :
- Circular
- Feature :
- Board Guide
- Applications :
- Aerospace, Automotive, General Purpose, Industrial, Medical, Telecommunications
- Voltage - Rated :
- 500V
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 3.94μin 0.100μm
- Packaging :
- Tray
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Factory Lead Time :
- 17 Weeks
- Contact Length - Post :
- 0.114 2.90mm
- Contact Material :
- Brass
- Fastening Type :
- Locking Ramp
- Mounting Type :
- Through Hole
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Pitch - Mating :
- 0.125 3.18mm
- Operating Temperature :
- -40°C~150°C
- Contact Finish Thickness - Mating :
- 3.94μin 0.100μm
- Insulation Color :
- Black
- Series :
- MultiCat 205927
- Number of Rows :
- 2
- Current Rating (Amps) :
- 6.5A per Contact
- RoHS Status :
- ROHS3 Compliant
- Number of Positions Loaded :
- All
- Datasheets
- 2059271110
2059271110 Documents
MultiCat 205927 Series 2-Row Header Solder Brass Tray Through Hole Gold Liquid Crystal Polymer (LCP) 8-Position Board to Cable/Wire 0.591 15.00mm Height
2059271110 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the MultiCat 205927 Series.There is the possibility of using the device for Aerospace, Automotive, General Purpose, Industrial, Medical, Telecommunications.In many ways, Board Guide makes it more powerful.Operating temperature is set to -40°C~150°C.
2059271110 Features
MultiCat 205927 series
2059271110 Applications
There are a lot of Molex
2059271110 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
