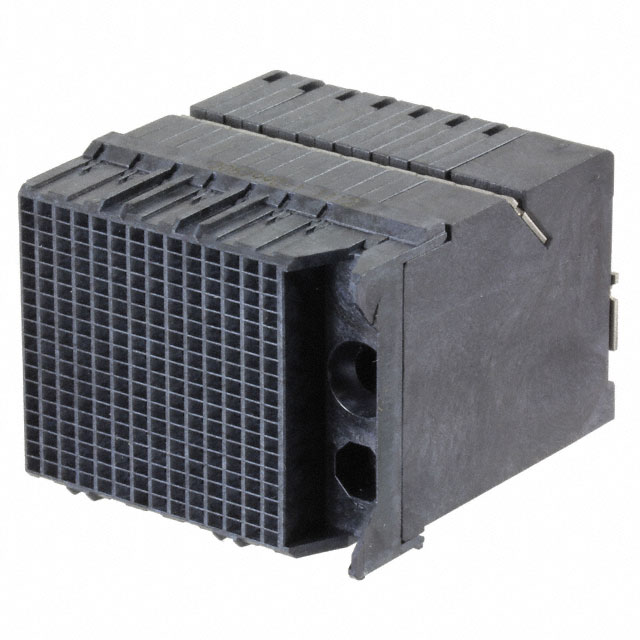

2057990-1
Or copy the link below:
- Mfr.Part #
- 2057990-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 252POS EDGE MNT
- Stock
- 21,289
- In Stock ：
- 21,289
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Underplate Material :
- Nickel
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Feature :
- Board Guide
- RoHS Status :
- RoHS Compliant
- Differential Pairs per Column :
- 6
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Termination :
- Press-Fit
- Packaging :
- Tube
- Color :
- Black
- Number of Rows :
- 18
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~ 85°C
- Orientation :
- RIGHT ANGLE
- Row Spacing :
- 1.3462 mm
- Length :
- 34.2mm
- Contact Current Rating :
- 750mA
- Length - Tail :
- 1.2mm
- Series :
- Impact
- Differential Signaling :
- yes
- Make First / Break Last :
- No
- Published :
- 2015
- Connector Type :
- Receptacle, Female Sockets
- Height :
- 25.4mm
- Connector Style :
- Impact, Guide Right
- ELV :
- Compliant
- Contact Plating :
- Gold, Tin
- Number of Columns :
- 14
- PCB Mounting Orientation :
- RIGHT ANGLE
- Data Rate :
- 25 Gbps
- Hole Diameter :
- 381 µm
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 252
- Plating Thickness :
- 760 nm
- Width :
- 37.3mm
- Pitch :
- 0.075 1.91mm
- Factory Lead Time :
- 18 Weeks
- PCB Thickness :
- 990.6μm
- Number of Positions Loaded :
- All
- Number of Ground Positions :
- 84
- Connector Usage :
- Daughtercard
- Housing Material :
- Polymer
- Number of Signal Positions :
- 168
- Contact Finish :
- Gold
- Datasheets
- 2057990-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 252 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2057990-1 Overview
This product is packaged in a Receptacle, Female Sockets box.Board Edge, Through Hole, Right Angle indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Impact Series.In many ways, Board Guide makes it more powerful.Operating temperature is set to -55°C~ 85°C.
2057990-1 Features
Impact series
2057990-1 Applications
There are a lot of TE Connectivity AMP Connectors
2057990-1 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
