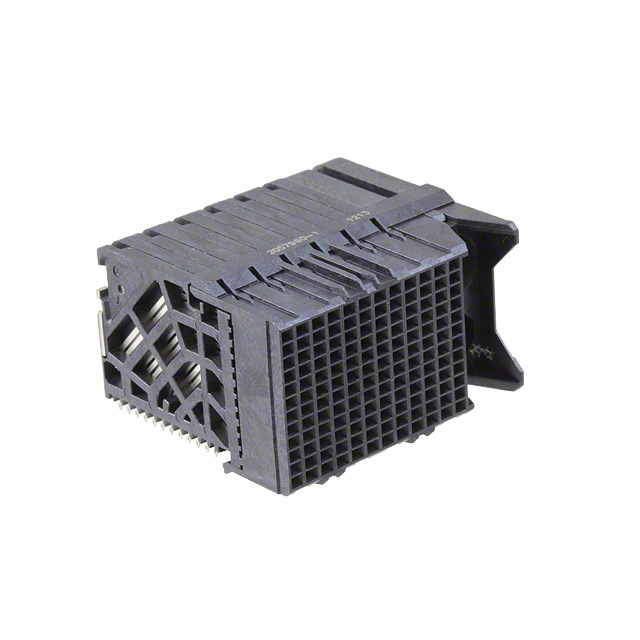

2057960-1
Or copy the link below:
- Mfr.Part #
- 2057960-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 144POS EDGE MNT
- Stock
- 12,894
- In Stock ：
- 12,894
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Pitch :
- 0.075 1.91mm
- Polarization Key :
- POLARIZED HOUSING
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Tube
- Hole Diameter :
- 381 µm
- Contact Plating :
- Gold, Tin
- Connector Style :
- Impact, Guide Right
- Row Spacing :
- 1.3462 mm
- Mount :
- Edge, Through Hole
- Total Number of Contacts :
- 144
- Contact Finish :
- Gold
- PCB Contact Pattern :
- RECTANGULAR
- Length :
- 30.4mm
- Connector Type :
- Receptacle, Female Sockets
- Reference Standard :
- UL, CSA
- Factory Lead Time :
- 14 Weeks
- Color :
- Black
- ELV :
- Compliant
- Termination :
- Press-Fit
- Make First / Break Last :
- No
- Published :
- 2012
- Differential Signaling :
- yes
- Contact Current Rating :
- 750mA
- Number of Positions :
- 144
- RoHS Status :
- RoHS Compliant
- Series :
- Impact
- Feature :
- Board Guide
- Material Flammability Rating :
- UL94 V-0
- PCB Thickness :
- 990.6μm
- Plating Thickness :
- 760 nm
- Number of Rows :
- 12
- Number of Conductors :
- ONE
- PCB Mounting Orientation :
- RIGHT ANGLE
- Orientation :
- RIGHT ANGLE
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Ground Positions :
- 48
- Length - Tail :
- 1.2mm
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Body Depth :
- 1.11 inch
- Connector Usage :
- Daughtercard
- Flammability Rating :
- UL94 V-0
- Data Rate :
- 25 Gbps
- Width :
- 28.2mm
- Differential Pairs per Column :
- 4
- Contact Pattern :
- RECTANGULAR
- Reliability :
- COMMERCIAL
- Operating Temperature :
- -55°C~ 85°C
- Underplate Material :
- Nickel
- Height :
- 17.3mm
- Number Of PCB Rows :
- 12
- Number of Positions Loaded :
- All
- Number of Signal Positions :
- 96
- Contact Style :
- SQ PIN-SKT
- Housing Material :
- Polymer
- Datasheets
- 2057960-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 144 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2057960-1 Overview
Packaging for this item is Receptacle, Female Sockets.There is a mounting type of Board Edge, Through Hole, Right Angle for this device.It is necessary to use a Tube case for packaging the product.This product is part of the Impact Series.In many ways, its Board Guide feature makes it more powerful.Edge, Through Hole is used to mount the part.In this case, the device operates at -55°C~ 85°C Operating Temperature.
2057960-1 Features
Impact series
2057960-1 Applications
There are a lot of TE Connectivity AMP Connectors
2057960-1 Backplane Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
