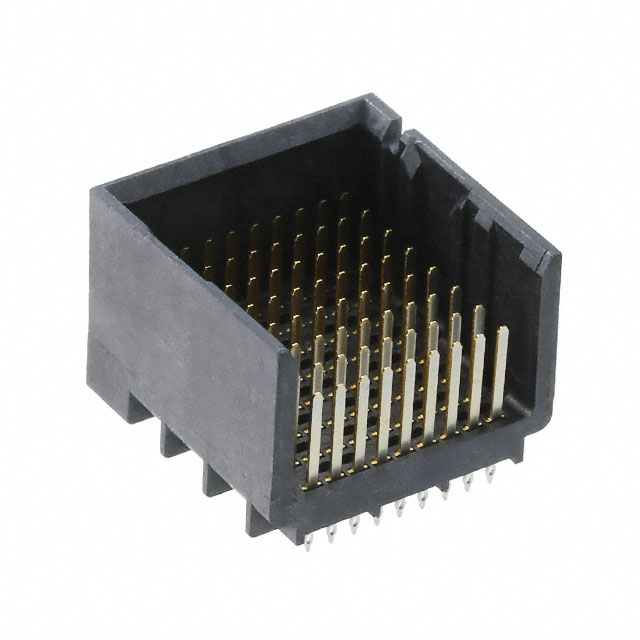

2057761-3
Or copy the link below:
- Mfr.Part #
- 2057761-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 72POS PCB
- Stock
- 124
- In Stock ：
- 124
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- RoHS Status :
- RoHS Compliant
- Number of Columns :
- 8
- Contact Finish :
- Gold
- Polarization Key :
- POLARIZED HOUSING
- Termination :
- Press-Fit
- Number of Ground Positions :
- 24
- Body Depth :
- 0.47 inch
- Number of Signal Positions :
- 48
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Connector Type :
- Receptacle, Female Sockets
- Body Breadth :
- 0.657 inch
- Number Of PCB Rows :
- 9
- Published :
- 2012
- PCB Contact Pattern :
- RECTANGULAR
- Number of Conductors :
- ONE
- Data Rate :
- 25 Gbps
- Packaging :
- Tube
- Shrouding :
- Partially Shrouded
- Length - Tail :
- 1.2mm
- Underplate Material :
- Nickel
- Differential Pairs per Column :
- 3
- Operating Supply Voltage :
- 30V
- Number of Positions :
- 72
- Number of Rows :
- 9
- Current Rating :
- 750mA
- PCB Thickness :
- 990.6μm
- Contact Pattern :
- RECTANGULAR
- Row Spacing :
- 1.3462 mm
- Mounting Type :
- Through Hole
- Contact Plating :
- Gold, Tin
- PCB Mounting Orientation :
- Vertical
- Number of Positions Loaded :
- All
- Series :
- Impact
- Height :
- 11.95mm
- Max Current Rating :
- 750mA
- Differential Signaling :
- yes
- Contact Current Rating :
- 750mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Width :
- 16.7mm
- Mounting Option 1 :
- LOCKING
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Plating Thickness :
- 760 nm
- Contact Style :
- BLADE PIN-SKT
- Make First / Break Last :
- No
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Color :
- Black
- Length :
- 16.4846mm
- Reliability :
- COMMERCIAL
- Total Number of Contacts :
- 72
- Pitch :
- 0.075 1.91mm
- Circuit Application :
- Signal
- Reference Standard :
- UL
- Housing Material :
- Polymer
- Hole Diameter :
- 457.2 µm
- Operating Temperature :
- -55°C~ 85°C
- Mating Alignment :
- With
- Datasheets
- 2057761-3
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 72 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Through Hole
2057761-3 Overview
It comes in Receptacle, Female Sockets packaging.The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the Impact Series of products.The device runs in -55°C~ 85°C Operating Temperature.With a supply voltage of 30V, this Backplane Connector works.
2057761-3 Features
Impact series
2057761-3 Applications
There are a lot of TE Connectivity AMP Connectors
2057761-3 Backplane Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
