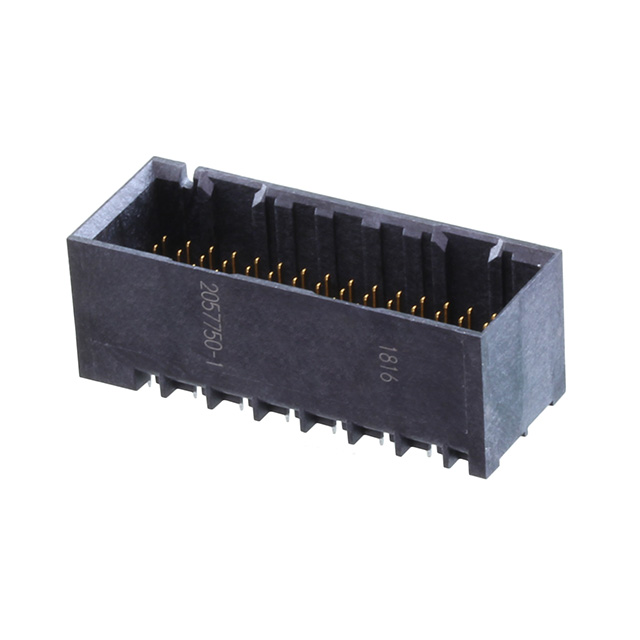

2057750-1
Or copy the link below:
- Mfr.Part #
- 2057750-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 96POS PCB
- Stock
- 129
- In Stock ：
- 129
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Finish :
- Gold
- Number of Rows :
- 6
- Number of Columns :
- 16
- Max Current Rating :
- 750mA
- Packaging :
- Bulk
- Number of Ground Positions :
- 32
- Row Spacing :
- 1.3462 mm
- PCB Thickness :
- 990.6μm
- Termination :
- Press-Fit
- Min Operating Temperature :
- -67°C
- Make First / Break Last :
- No
- Voltage - Rated :
- 30VAC/DC
- Series :
- Impact
- Published :
- 2011
- Housing Color :
- Black
- Number of Signal Positions :
- 64
- Operating Supply Voltage :
- 30V
- Data Rate :
- 25 Gbps
- Length :
- 33.09874mm
- Pitch :
- 0.075 1.91mm
- Underplate Material :
- Nickel
- Mounting Type :
- Through Hole
- PCB Mounting Orientation :
- Vertical
- Current Rating (Amps) :
- 0.75A
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 19 Weeks
- Plating Thickness :
- 760 nm
- Sealable :
- No
- Height :
- 11.95mm
- Contact Plating :
- Gold, Tin
- Material Flammability Rating :
- UL94 V-0
- Differential Signaling :
- yes
- Operating Temperature :
- -55°C~ 85°C
- Number of Positions Loaded :
- All
- Contact Finish Thickness :
- 30.0μin 0.76μm
- ELV :
- Compliant
- Number of Pairs :
- 32
- Differential Pairs per Column :
- 2
- Width :
- 12.7mm
- Hole Diameter :
- 381 µm
- Max Operating Temperature :
- 185°C
- RoHS Status :
- RoHS Compliant
- Orientation :
- Vertical
- Shrouding :
- Fully Shrouded
- Stackable :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Current Rating :
- 750mA
- Length - Tail :
- 1.4mm
- Mating Alignment :
- With
- Housing Material :
- Polymer
- Color :
- Black
- Number of Positions :
- 96
- Connector Style :
- Impact
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 750mA
- Number of Contacts :
- 96
- Circuit Application :
- Signal
- Connector Type :
- Header, Male Pins
- Datasheets
- 2057750-1
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 96 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2057750-1 Overview
Currently, it is packaged in Header, Male Pins.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Impact Series, it belongs to the range of products of that series.A temperature below 185°C is best for using it.The device must run at -67°C degrees.-55°C~ 85°C Operating Temperature is the default operating temperature for the device.If you supply the connector with a voltage of 30V, it will work.
2057750-1 Features
Impact series
2057750-1 Applications
There are a lot of TE Connectivity AMP Connectors
2057750-1 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
