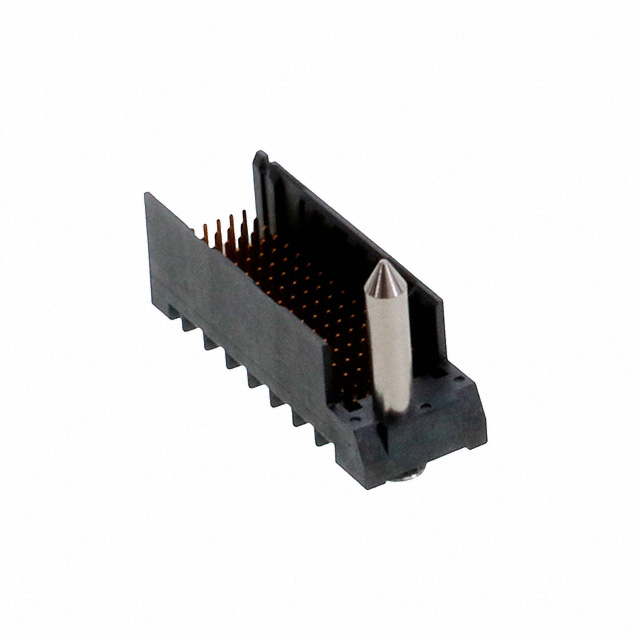

2057741-1
Or copy the link below:
- Mfr.Part #
- 2057741-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 96POS PCB
- Stock
- 1,594
- In Stock ：
- 1,594
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Underplate Material :
- Nickel
- Height :
- 11.95mm
- Connector Type :
- Header, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Plating Thickness :
- 760 nm
- Stackable :
- No
- Operating Supply Voltage :
- 30V
- Voltage - Rated :
- 30VAC/DC
- Connector Style :
- Impact, Guide Right
- Number of Pairs :
- 32
- Housing Color :
- Black
- ELV :
- Compliant
- Housing Material :
- Polymer
- Number of Rows :
- 6
- Shrouding :
- Partially Shrouded
- Contact Finish :
- Gold
- Mount :
- Through Hole
- Length :
- 36.90112mm
- Max Operating Temperature :
- 185°C
- Termination :
- Press-Fit
- Orientation :
- Vertical
- Number of Positions :
- 96
- Factory Lead Time :
- 19 Weeks
- Published :
- 2011
- Hole Diameter :
- 381 µm
- Number of Pins :
- 96
- Min Operating Temperature :
- -67°C
- Mating Alignment :
- With
- Max Current Rating :
- 750mA
- Number of Columns :
- 16
- PCB Mounting Orientation :
- Vertical
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Sealable :
- No
- Number of Contacts :
- 96
- Contact Finish Thickness :
- 30.0μin 0.76μm
- RoHS Status :
- RoHS Compliant
- Circuit Application :
- Signal
- Width :
- 12.7mm
- Number of Ground Positions :
- 32
- Differential Pairs per Column :
- 2
- Operating Temperature :
- -55°C~ 85°C
- Current Rating (Amps) :
- 0.75A
- Color :
- Black
- Data Rate :
- 25 Gbps
- Number of Signal Positions :
- 64
- PCB Thickness :
- 990.6μm
- Flammability Rating :
- UL94 V-0
- Material Flammability Rating :
- UL94 V-0
- Contact Current Rating :
- 750mA
- Length - Tail :
- 1.4mm
- Number of Positions Loaded :
- All
- Series :
- Impact
- Pitch :
- 0.075 1.91mm
- Mounting Type :
- Through Hole
- Row Spacing :
- 1.35 mm
- Packaging :
- Bulk
- Contact Plating :
- Gold, Tin
- Current Rating :
- 750mA
- Make First / Break Last :
- No
- Differential Signaling :
- yes
- Datasheets
- 2057741-1
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 96 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2057741-1 Overview
A Header, Male Pins package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Impact Series of products.96 pins are provided on the device.Whenever it's below 185°C, it's best to use it.The device must operate at a temperature of -67°C at all times.Through Hole mounts the part.There is no operating temperature for the device.This Backplane Connector operates with a supply voltage of 30V.
2057741-1 Features
Impact series
2057741-1 Applications
There are a lot of TE Connectivity AMP Connectors
2057741-1 Backplane Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
