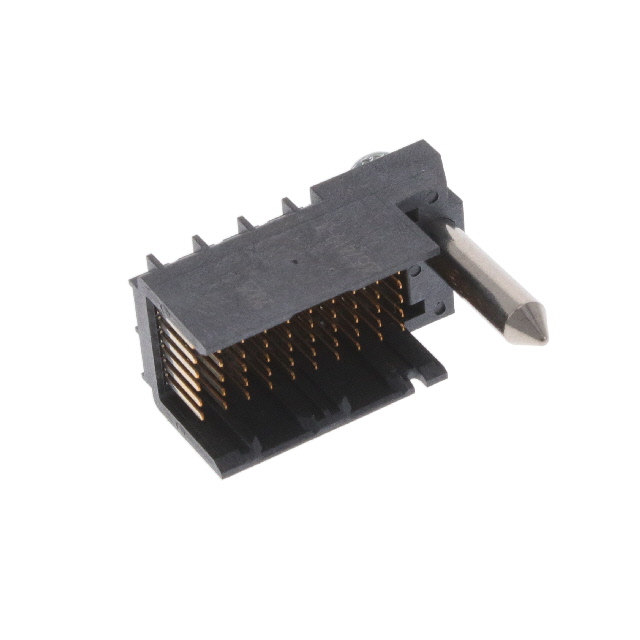

2057419-3
Or copy the link below:
- Mfr.Part #
- 2057419-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER IMPACT 60POS PCB
- Stock
- 673
- In Stock ：
- 673
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Height :
- 20.6mm
- Number of Pairs :
- 20
- Number of Contacts :
- 60
- Housing Color :
- Black
- Contact Plating :
- Gold, Tin
- Color :
- Black
- Underplate Material :
- Nickel
- Max Current Rating :
- 750mA
- Number of Ground Positions :
- 20
- PCB Thickness :
- 1mm
- Material Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -67°C
- Length - Tail :
- 1.4mm
- ELV :
- Compliant
- Shrouding :
- Partially Shrouded
- Packaging :
- Bulk
- Voltage - Rated :
- 30VAC/DC
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Flammability Rating :
- UL94 V-0
- Orientation :
- Vertical
- Hole Diameter :
- 381 µm
- Max Operating Temperature :
- 185°C
- Number of Columns :
- 10
- Connector Type :
- Header, Male Pins
- Factory Lead Time :
- 16 Weeks
- Published :
- 2011
- Number of Signal Positions :
- 40
- Current Rating (Amps) :
- 0.75A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Width :
- 12.7mm
- Series :
- Impact
- Operating Supply Voltage :
- 30V
- Termination :
- Press-Fit
- Make First / Break Last :
- No
- Number of Positions :
- 60
- RoHS Status :
- RoHS Compliant
- Differential Pairs per Column :
- 2
- Impedance :
- 100Ohm
- Contact Style :
- Press-Fit
- Number of Rows :
- 6
- Plating Thickness :
- 760 nm
- Mating Alignment :
- With
- PCB Mounting Orientation :
- Vertical
- Row Spacing :
- 1.35 mm
- Mounting Type :
- Through Hole
- Connector Style :
- Impact, Guide Left
- Length :
- 25.5mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Stackable :
- No
- Housing Material :
- Polymer
- Data Rate :
- 25 Gbps
- Number of Positions Loaded :
- All
- Operating Temperature :
- -55°C~ 85°C
- Contact Finish :
- Gold
- Radiation Hardening :
- No
- Differential Signaling :
- yes
- Pitch :
- 0.075 1.91mm
- Sealable :
- No
- Circuit Application :
- Signal
- Contact Current Rating :
- 750mA
- Current Rating :
- 750mA
- Datasheets
- 2057419-3
Impact Series Header, Male Pins Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Bulk Through Hole
2057419-3 Overview
Packaging is Header, Male Pins.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Impact Series, it can be found in this category.Temperatures below 185°C are best for using it.There's a minimum temperature of -67°C for this device.The device is operating at -55°C~ 85°C Operating Temperature.The Backplane Connector is functional when supplied with voltage 30V.
2057419-3 Features
Impact series
2057419-3 Applications
There are a lot of TE Connectivity AMP Connectors
2057419-3 Backplane Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
