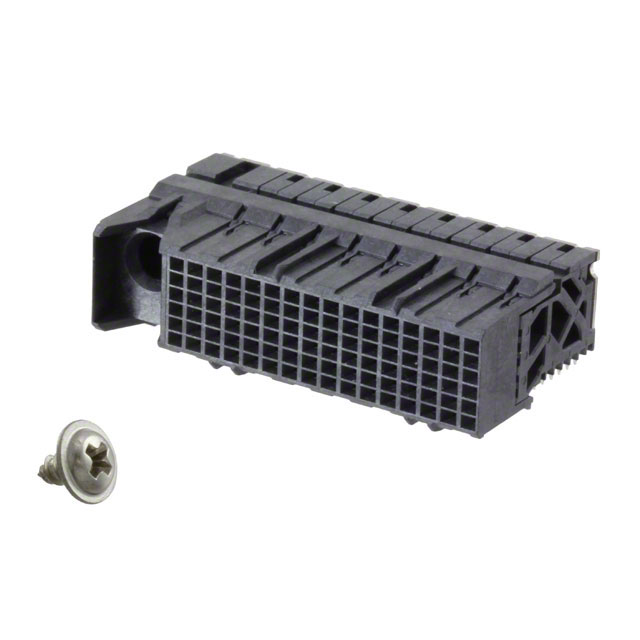

2057409-1
Or copy the link below:
- Mfr.Part #
- 2057409-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 96POS PCB
- Stock
- 42,461
- In Stock ：
- 42,461
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Plating Thickness :
- 1.27μm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Series :
- Impact
- Contact Style :
- Press-Fit
- Differential Signaling :
- yes
- Underplate Material :
- Nickel
- Color :
- Black
- Number of Columns :
- 16
- Height :
- 10.9mm
- Operating Temperature :
- -55°C~ 85°C
- Current Rating :
- 750mA
- Connector Style :
- Impact, Guide Left
- Differential Pairs per Column :
- 2
- Contact Finish :
- Gold
- Number of Rows :
- 6
- Connector Usage :
- Daughtercard
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- 0.75A
- Feature :
- Board Guide
- Number of Positions :
- 96
- ELV :
- Compliant
- Connector Type :
- Receptacle, Female Sockets
- Packaging :
- Tube
- Stackable :
- No
- Material Flammability Rating :
- UL94 V-0
- Contact Current Rating :
- 750mA
- Number of Pairs :
- 32
- Min Operating Temperature :
- -67°C
- Mating Alignment :
- With
- Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 30V
- Max Current Rating :
- 750mA
- Published :
- 2011
- PCB Thickness :
- 1.6mm
- Hole Diameter :
- 381 µm
- Termination :
- Press-Fit
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Orientation :
- RIGHT ANGLE
- Row Spacing :
- 1.35 mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Circuit Application :
- Signal
- Housing Material :
- Polymer
- Shrouding :
- Unshrouded
- Contact Plating :
- Gold, Tin
- RoHS Status :
- RoHS Compliant
- Number of Signal Positions :
- 64
- Width :
- 20.1mm
- Operating Supply Voltage :
- 30V
- Number of Positions Loaded :
- All
- Number of Ground Positions :
- 32
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Data Rate :
- 25 Gbps
- Sealable :
- No
- Max Operating Temperature :
- 185°C
- Length :
- 38mm
- Length - Tail :
- 1.2mm
- Housing Color :
- Black
- Impedance :
- 100Ohm
- Make First / Break Last :
- No
- Pitch :
- 0.075 1.91mm
- Number of Contacts :
- 96
- Mount :
- Through Hole
- Lead Free :
- Lead Free
- Factory Lead Time :
- 16 Weeks
- Datasheets
- 2057409-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 96 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Through Hole
2057409-1 Overview
This product is packaged in a Receptacle, Female Sockets box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Impact Series.Use it below 185°C.A minimum temperature of -67°C must be maintained for the operation of this device.In many ways, Board Guide makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -55°C~ 85°C.The Backplane Connector is capable of working with a supply voltage of 30V.
2057409-1 Features
Impact series
2057409-1 Applications
There are a lot of TE Connectivity AMP Connectors
2057409-1 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
