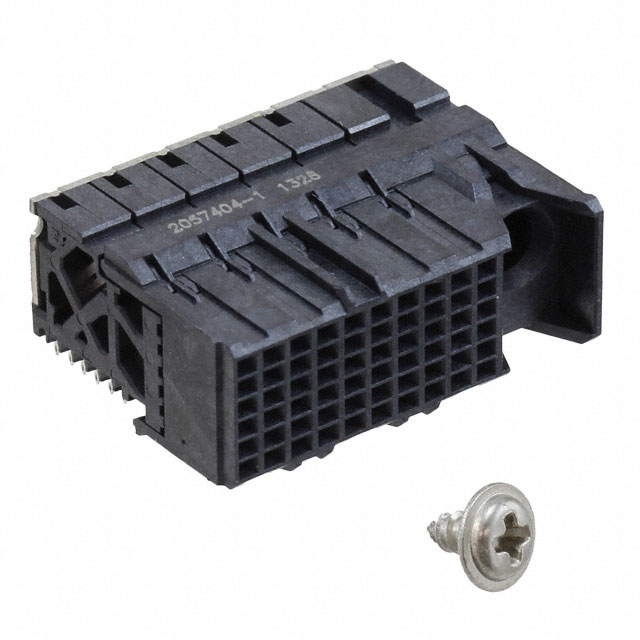

2057404-1
Or copy the link below:
- Mfr.Part #
- 2057404-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPACT 60POS EDGE MNT
- Stock
- 937
- In Stock ：
- 937
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -55°C~ 85°C
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- PCB Mounting Orientation :
- RIGHT ANGLE
- Depth :
- 20.1mm
- Factory Lead Time :
- 13 Weeks
- Width :
- 20.1mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Style :
- Impact, Guide Right
- Contact Style :
- Press-Fit
- Underplate Material :
- Nickel
- Mating Alignment :
- With
- Make First / Break Last :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Max Operating Temperature :
- 185°C
- Number of Ground Positions :
- 20
- Contact Plating :
- Gold, Tin
- Current Rating :
- 750mA
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Material Flammability Rating :
- UL94 V-0
- Max Current Rating :
- 750mA
- Plating Thickness :
- 1.27μm
- Number of Positions :
- 60
- Housing Color :
- Black
- Housing Material :
- Polymer
- Operating Supply Voltage :
- 30V
- Published :
- 2011
- Differential Signaling :
- yes
- Shrouding :
- Unshrouded
- Voltage - Rated :
- 120V
- Gender :
- Receptacle
- Termination :
- Press-Fit
- Number of Columns :
- 10
- Max Voltage Rating (AC) :
- 120V
- Min Operating Temperature :
- -67°C
- Number of Signal Positions :
- 40
- Connector Type :
- Receptacle, Female Sockets
- Circuit Application :
- Signal
- Orientation :
- RIGHT ANGLE
- Contact Current Rating :
- 750mA
- Number of Positions Loaded :
- All
- Length :
- 26.5938mm
- Flammability Rating :
- UL94 V-0
- Length - Tail :
- 1.2mm
- Color :
- Black
- Connector Usage :
- Daughtercard
- Number of Pairs :
- 20
- Height :
- 10.9mm
- Series :
- Impact
- Mount :
- Edge, Through Hole
- Differential Pairs per Column :
- 2
- Stackable :
- No
- Contact Finish :
- Gold
- Number of Rows :
- 6
- Feature :
- Board Guide
- Impedance :
- 100Ohm
- Packaging :
- Tube
- Pitch :
- 0.075 1.91mm
- PCB Thickness :
- 1.6mm
- Row Spacing :
- 1.35 mm
- ELV :
- Compliant
- Number of Contacts :
- 60
- Data Rate :
- 25 Gbps
- Hole Diameter :
- 381 µm
- Sealable :
- No
- Datasheets
- 2057404-1
Impact Series Receptacle, Female Sockets Press-Fit Gold Black 30.0μin 0.76μm 60 Positions Pitch: 0.075 1.91mm -55°C~ 85°C Tube Board Edge, Through Hole, Right Angle
2057404-1 Overview
Packaging is in the form of Receptacle, Female Sockets.This device has a Board Edge, Through Hole, Right Angle mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Impact Series.If the temperature is below 185°C, it's best to use it.-67°C is the minimum temperature for this device.Several benefits come from the Board Guide feature.There is a mounting hole at Edge, Through Hole.Devices operate at -55°C~ 85°C operating temperatures.A supply voltage of 30V is necessary for this Backplane Connector to work.
2057404-1 Features
Impact series
2057404-1 Applications
There are a lot of TE Connectivity AMP Connectors
2057404-1 Backplane Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
