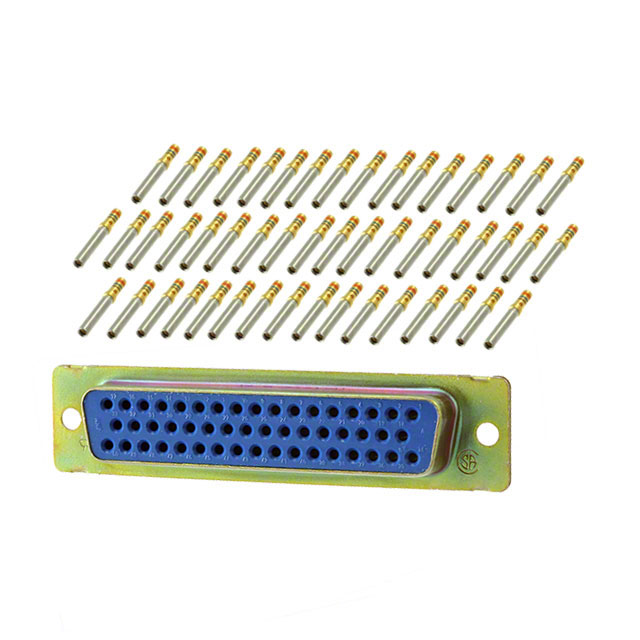

205563-2
Or copy the link below:
- Mfr.Part #
- 205563-2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 50POS CRIMP
- Stock
- 201
- In Stock ：
- 201
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub Connector Assemblies
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Finish :
- Gold
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Contact Type :
- Signal
- Connector Type :
- Receptacle, Female Sockets
- IEC Conformance :
- No
- Total Number of Contacts :
- 50
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Termination :
- Crimp
- Body Breadth :
- 0.62 inch
- Connector Style :
- D-Sub
- Reliability :
- COMMERCIAL
- Contact Design :
- PREASSEM CONN
- Flange Feature :
- Housing/Shell (Unthreaded)
- Operating Temperature :
- -55°C~125°C
- Contact Material :
- Copper, Nickel
- Lead Free :
- Contains Lead
- Published :
- 2005
- DIN Conformance :
- No
- Hole Diameter :
- 3.048 mm
- Current Rating :
- 7.5A
- Mount :
- CABLE
- RoHS Status :
- Non-RoHS Compliant
- Number of Positions :
- 50
- Option :
- GENERAL PURPOSE
- Shell Size, Connector Layout :
- 5 DD D
- Gender :
- FEMALE
- Shell Material :
- Steel
- Shell Material, Finish :
- Steel, Cadmium Plated
- Depth :
- 17.06mm
- Material :
- Metal
- MIL Conformance :
- No
- Empty Shell :
- No
- Orientation :
- Straight
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 109
- Mixed Contacts :
- No
- Number of Ports :
- 1
- Filter Feature :
- No
- Length :
- 67.31mm
- Mounting Type :
- Free Hanging (In-Line)
- Number of Rows :
- 3
- Dielectric Material :
- Polyester
- Factory Lead Time :
- 10 Weeks
- Packaging :
- Bulk
- ECCN Code :
- EAR99
- Sealable :
- No
- Plating :
- Cadmium
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- ELV :
- Non-Compliant
- Datasheets
- 205563-2
Military, MIL-DTL-24308, AMPLIMITE 109 Series D-Sub Receptacle, Female Sockets 50-Position Female Signal Crimp 5 DD D Free Hanging (In-Line) Copper, Nickel Gold Steel, Cadmium Plated
205563-2 Overview
The product comes in a package of Receptacle, Female Sockets.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the Military, MIL-DTL-24308, AMPLIMITE 109 Series of products.The device is equipped with 1 ports for the management of a variety of tasks.Cable mounts the part.There is no operating temperature for the device.
205563-2 Features
Military, MIL-DTL-24308, AMPLIMITE 109 series
205563-2 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
205563-2 D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
