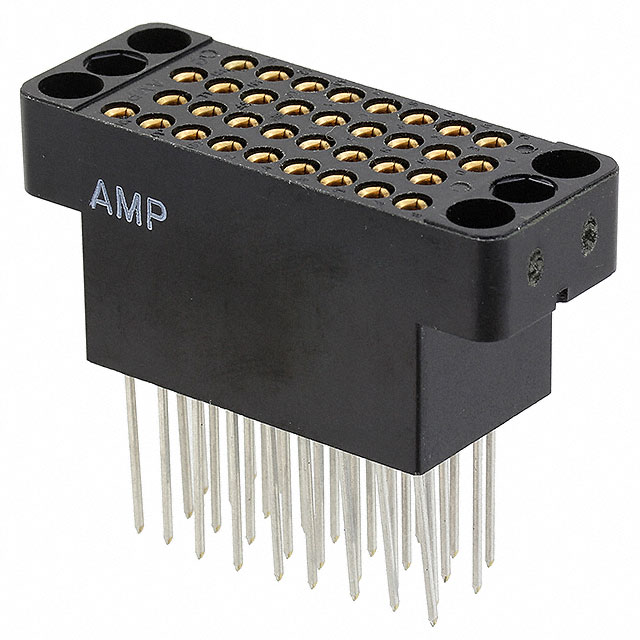

205505-1
Or copy the link below:
- Mfr.Part #
- 205505-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 34POS PNL MNT
- Stock
- 13,522
- In Stock ：
- 13,522
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Connector Type :
- Receptacle, Female Sockets
- Termination :
- Wire Wrap
- Series :
- M
- Mount :
- Panel
- Height :
- 23.24mm
- Circuit Application :
- Signal
- Wire/Cable Gauge :
- 24 AWG
- Mounting Type :
- Panel Mount
- Color :
- Black
- Option :
- GENERAL PURPOSE
- Published :
- 2008
- Total Number of Contacts :
- 34
- Pitch :
- 0.150 3.81mm
- Sealable :
- No
- Factory Lead Time :
- 30 Weeks
- MIL Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Number of Positions :
- 34
- IEC Conformance :
- No
- Contact Material :
- Brass
- Lead Free :
- Contains Lead
- Housing Material :
- Phenolic
- Contact Finish :
- Gold
- Feature :
- Mating Guide
- Material Flammability Rating :
- UL94 V-0
- Length :
- 50.8mm
- Flammability Rating :
- UL94 V-0
- Empty Shell :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Orientation :
- Straight
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Retention :
- With
- Mixed Contacts :
- No
- DIN Conformance :
- No
- Width :
- 19.05mm
- ELV :
- Non-Compliant
- Additional Feature :
- AMP
- Filter Feature :
- No
- Operating Temperature :
- -55°C~150°C
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- RoHS Status :
- Non-RoHS Compliant
- Number of Rows :
- 4
- Datasheets
- 205505-1
M Series Receptacle, Female Sockets Wire Wrap Gold Black 30.0μin 0.76μm 34 Positions Pitch: 0.150 3.81mm -55°C~150°C Bulk Panel Mount
205505-1 Overview
The packaging contains Receptacle, Female Sockets.There is a Panel Mount mounting type for the device.This product is packaged in a case marked Bulk.Product number M belongs to the M Series.Further, there are features such as AMP, to name only a few.In many ways, it is more powerful due to its Mating Guide feature.There is a Panel mount on the part.This device operates at a temperature of -55°C~150°C.
205505-1 Features
M series
205505-1 Applications
There are a lot of TE Connectivity AMP Connectors
205505-1 Backplane Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
