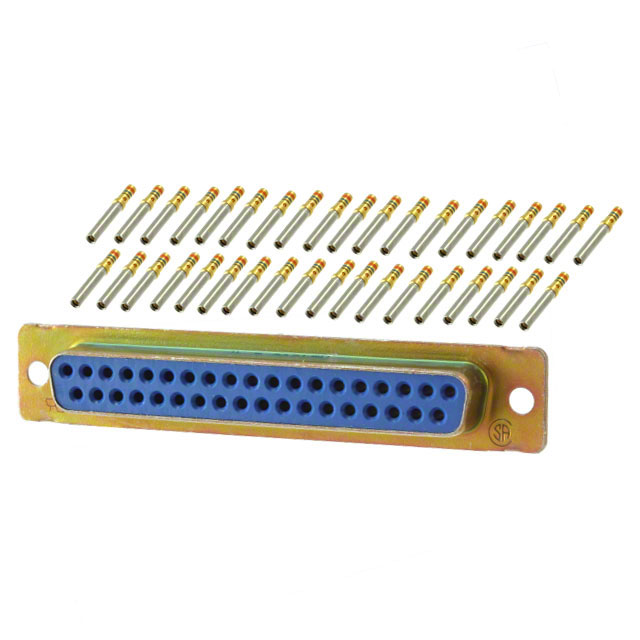

205561-2
Or copy the link below:
- Mfr.Part #
- 205561-2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 37POS CRIMP
- Stock
- 198
- In Stock ：
- 198
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub Connector Assemblies
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 109
- IEC Conformance :
- No
- Depth :
- 17.06mm
- Sealable :
- No
- Shell Material :
- Steel
- Filter Feature :
- No
- MIL Conformance :
- No
- Shell Size, Connector Layout :
- 4 DC C
- Contact Material :
- Copper, Nickel
- Mount :
- CABLE
- ECCN Code :
- EAR99
- DIN Conformance :
- No
- Hole Diameter :
- 3.048 mm
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Contact Design :
- PREASSEM CONN
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 2
- RoHS Status :
- Non-RoHS Compliant
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Factory Lead Time :
- 14 Weeks
- Reliability :
- COMMERCIAL
- Gender :
- Receptacle
- Flange Feature :
- Housing/Shell (Unthreaded)
- Body Breadth :
- 0.509 inch
- Number of Ports :
- 1
- HTS Code :
- 8536.69.40.30
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Length :
- 69.7mm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Packaging :
- Bulk
- Current Rating :
- 7.5A
- Plating :
- Cadmium
- Dielectric Material :
- Polyester
- Mixed Contacts :
- No
- Orientation :
- Straight
- Shell Material, Finish :
- Steel, Cadmium Plated
- Termination :
- Crimp
- Lead Free :
- Not Applicable
- Contact Type :
- Signal
- Number of Positions :
- 37
- Published :
- 2009
- Connector Type :
- Receptacle, Female Sockets
- Total Number of Contacts :
- 37
- Connector Style :
- D-Sub
- Empty Shell :
- No
- Contact Finish :
- Gold
- Operating Temperature :
- -55°C~125°C
- ELV :
- Non-Compliant
- Mounting Type :
- Free Hanging (In-Line)
- Datasheets
- 205561-2
Military, MIL-DTL-24308, AMPLIMITE 109 Series D-Sub Receptacle, Female Sockets 37-Position Receptacle Signal Crimp 4 DC C Free Hanging (In-Line) Copper, Nickel Gold Steel, Cadmium Plated
205561-2 Overview
The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the Military, MIL-DTL-24308, AMPLIMITE 109 Series of products.It features 1 ports for managing a variety of tasks.The part is mounted by Cable.The device runs in -55°C~125°C Operating Temperature.
205561-2 Features
Military, MIL-DTL-24308, AMPLIMITE 109 series
205561-2 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
205561-2 D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
