205560-2
Or copy the link below:
- Mfr.Part #
- 205560-2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 25POS CRIMP
- Stock
- 1,495
- In Stock ：
- 1,495
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub Connector Assemblies
- Hole Diameter :
- 3.048 mm
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 109
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Sealable :
- No
- REACH SVHC :
- yes
- Number of Ports :
- 1
- Plating :
- Cadmium
- HTS Code :
- 8536.69.40.30
- Packaging :
- Bulk
- Mixed Contacts :
- No
- Depth :
- 16.36mm
- Current Rating :
- 7.5A
- Number of Rows :
- 2
- MIL Conformance :
- yes
- IEC Conformance :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Total Number of Contacts :
- 25
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Factory Lead Time :
- 11 Weeks
- Connector Type :
- Plug, Male Pins
- Contact Type :
- Signal
- DIN Conformance :
- No
- Connector Style :
- D-Sub
- Option :
- GENERAL PURPOSE
- Filter Feature :
- No
- Published :
- 1998
- ECCN Code :
- EAR99
- Termination :
- Crimp
- Operating Temperature :
- -55°C~125°C
- ELV :
- Non-Compliant
- Flange Feature :
- Housing/Shell (Unthreaded)
- Number of Positions :
- 25
- Mounting Type :
- Free Hanging (In-Line)
- Shell Material, Finish :
- Steel, Cadmium Plated
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Mount :
- CABLE
- Lead Free :
- Contains Lead
- Empty Shell :
- No
- Length :
- 53.41mm
- Contact Finish :
- Gold
- Shell Size, Connector Layout :
- 3 DB B
- Reliability :
- COMMERCIAL
- Dielectric Material :
- Polyester
- Body Breadth :
- 0.509 inch
- Orientation :
- Straight
- Contact Design :
- PREASSEM CONN
- Material :
- Metal
- RoHS Status :
- Non-RoHS Compliant
- Body Material :
- Steel
- Datasheets
- 205560-2

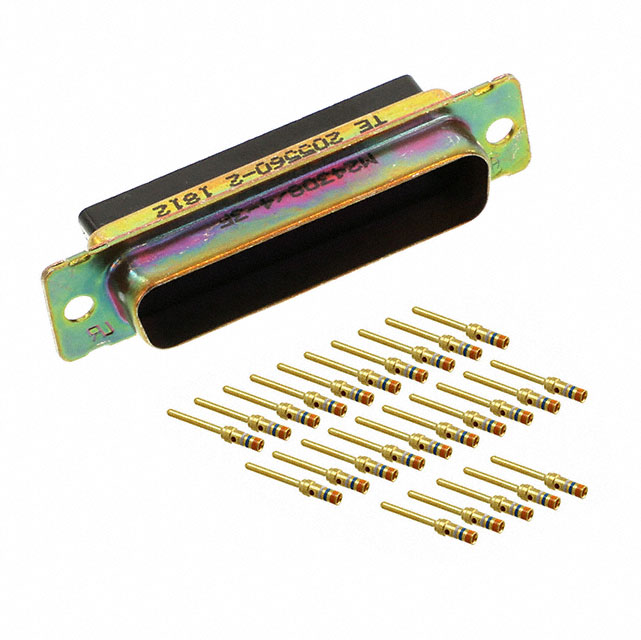

Military, MIL-DTL-24308, AMPLIMITE 109 Series D-Sub Plug, Male Pins 25-Position Signal Crimp 3 DB B Free Hanging (In-Line) Gold Steel, Cadmium Plated
205560-2 Overview
This product is packaged in a Plug, Male Pins box.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number Military, MIL-DTL-24308, AMPLIMITE 109 belongs to the Military, MIL-DTL-24308, AMPLIMITE 109 Series.There are 1 ports available for managing a variety of tasks on this device.There is a Cable mount on the part.This device operates at a temperature of -55°C~125°C.
205560-2 Features
Military, MIL-DTL-24308, AMPLIMITE 109 series
205560-2 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
205560-2 D-Sub Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
