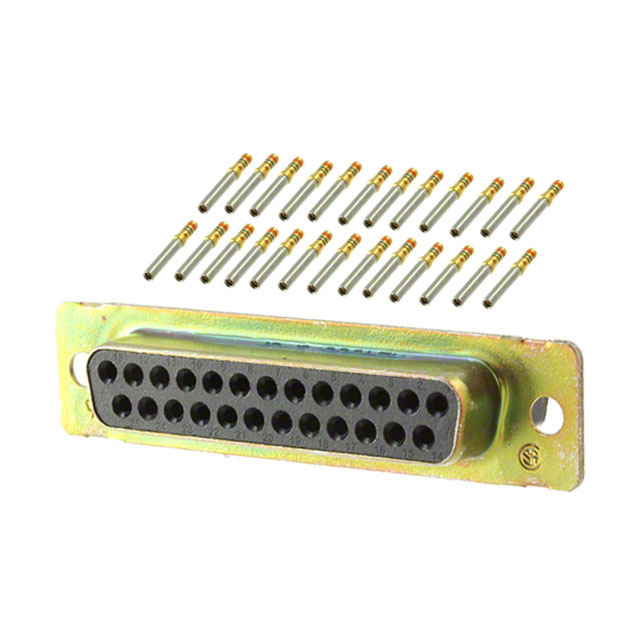

205559-2
Or copy the link below:
- Mfr.Part #
- 205559-2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 25POS CRIMP
- Stock
- 1,192
- In Stock ：
- 1,192
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub Connector Assemblies
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Body Breadth :
- 0.509 inch
- DIN Conformance :
- No
- IEC Conformance :
- No
- Length :
- 53.42mm
- Hole Diameter :
- 3.048 mm
- Mixed Contacts :
- No
- Current Rating :
- 7.5A
- Flange Feature :
- Housing/Shell (Unthreaded)
- ECCN Code :
- EAR99
- Filter Feature :
- No
- Number of Rows :
- 2
- Contact Type :
- Signal
- HTS Code :
- 8536.69.40.30
- Contact Material :
- Copper, Nickel
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Contact Finish :
- Gold
- Packaging :
- Bulk
- Operating Temperature :
- -55°C~125°C
- Lead Free :
- Contains Lead
- Termination :
- Crimp
- Factory Lead Time :
- 10 Weeks
- Mounting Type :
- Free Hanging (In-Line)
- Connector Style :
- D-Sub
- Plating :
- Cadmium
- MIL Conformance :
- yes
- Number of Ports :
- 1
- Housing Material :
- Polyester
- Shell Material, Finish :
- Steel, Cadmium Plated
- Empty Shell :
- No
- RoHS Status :
- Non-RoHS Compliant
- Connector Type :
- Receptacle, Female Sockets
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Shell Size, Connector Layout :
- 3 DB B
- Option :
- GENERAL PURPOSE
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Orientation :
- Straight
- Shell Material :
- Steel
- Contact Design :
- PREASSEM CONN
- Total Number of Contacts :
- 25
- Number of Positions :
- 25
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 109
- Package / Case :
- Metal
- Depth :
- 17.06mm
- Sealable :
- No
- ELV :
- Non-Compliant
- Published :
- 2007
- Mount :
- CABLE
- Gender :
- Receptacle
- Reliability :
- COMMERCIAL
- Datasheets
- 205559-2
Military, MIL-DTL-24308, AMPLIMITE 109 Series D-Sub Receptacle, Female Sockets 25-Position Receptacle Signal Crimp 3 DB B Free Hanging (In-Line) Copper, Nickel Gold Steel, Cadmium Plated
205559-2 Overview
Packaging for this item is Receptacle, Female Sockets.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Military, MIL-DTL-24308, AMPLIMITE 109 Series.There is a device enclosed in the packaging with the Metal.The device has 1 ports for managing a variety of tasks.It is mounted by Cable.It operates at an operating temperature of -55°C~125°C.
205559-2 Features
Military, MIL-DTL-24308, AMPLIMITE 109 series
205559-2 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
205559-2 D-Sub Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
