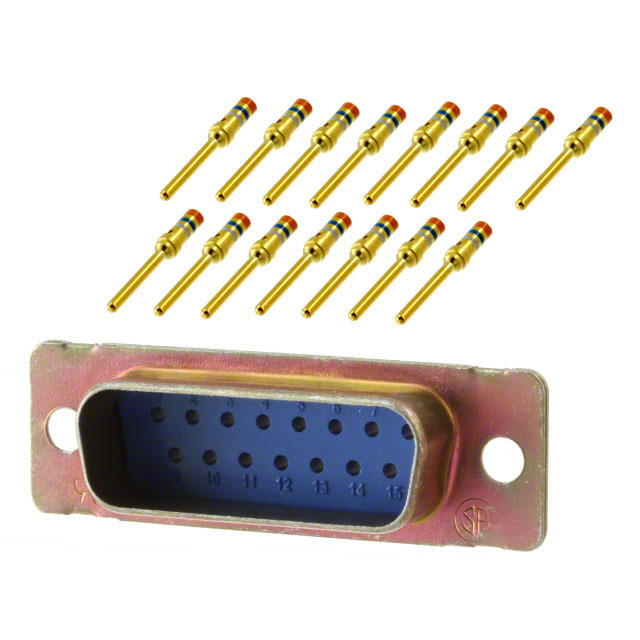

205558-2

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub Connector Assemblies

DIN Conformance :

No

Dielectric Material :

Polyester

Contact Material :

COPPER ALLOY

Lead Free :

Not Applicable

Orientation :

Straight

Number of Ports :

1

Connector Style :

D-Sub

Packaging :

Bulk

Plating :

Cadmium

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mounting Type :

Free Hanging (In-Line)

ELV :

Non-Compliant

Contact Design :

PREASSEM CONN

Contact Type :

Signal

MIL Conformance :

yes

Mount :

Panel

Contact Finish Thickness :

50.0μin 1.27μm

Sealable :

No

Contact Finish :

Gold

Body Breadth :

0.509 inch

Reliability :

COMMERCIAL

HTS Code :

8536.69.40.30

Number of Rows :

2

Shell Material, Finish :

Steel, Cadmium Plated

Flange Feature :

Housing/Shell (Unthreaded)

Length :

39.52mm

Published :

2007

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

IEC Conformance :

No

Option :

GENERAL PURPOSE

RoHS Status :

Non-RoHS Compliant

Hole Diameter :

3.048 mm

Termination :

Crimp

Gender :

Male

Current Rating :

7.5A

Mixed Contacts :

No

Connector Type :

Plug, Male Pins

Moisture Sensitivity Level (MSL) :

Not Applicable

Shell Size, Connector Layout :

2 DA A

ECCN Code :

EAR99

Shell Material :

Steel

Series :

Military, MIL-DTL-24308, AMPLIMITE 109

Operating Temperature :

-55°C~125°C

Number of Positions :

15

Depth :

16.59mm

Filter Feature :

No

Factory Lead Time :

11 Weeks

Empty Shell :

No

Total Number of Contacts :

15
